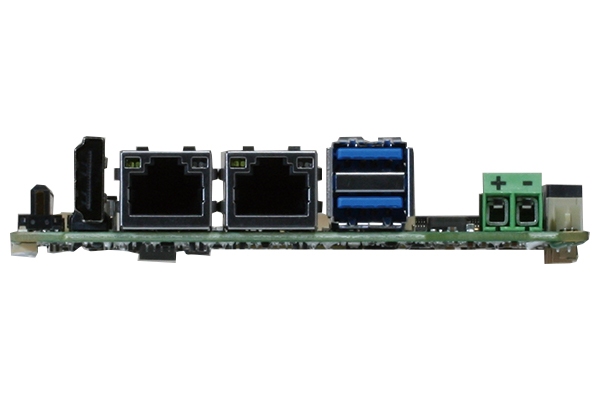

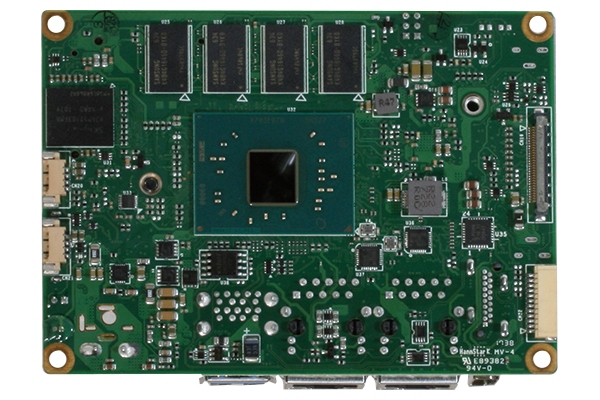

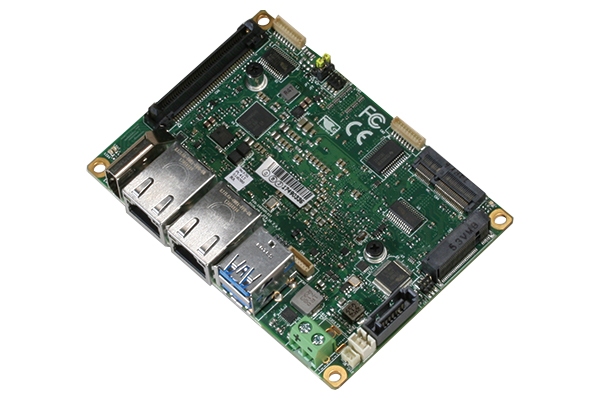

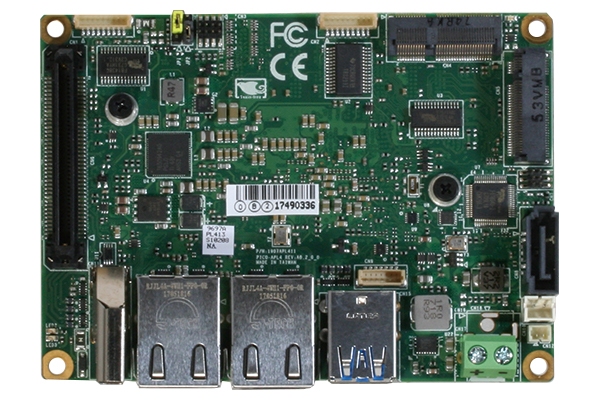

PICO-APL4, compact and cost-effective SBC. PICO-APL4 features dual Gigabit Ethernet support, internal storage memory and is ideal for use with factory automation and iota and gateway systems.
AAEON's new PICO board form factor is powered by the Intel® Atom™, Pentium® or Celeron® N3350 N4200 processor. DDR3L controller with up to 4GB RAM (memory) and AAEON with only 64GB eMMC storage card
The flexible PICO-APL4 accommodates USB ports and Connectors, COM ports, an HDMI Port and Optional edp. There is also a 4-bit DIO and optional quad-lane MIPI-CSI to manage peripherals. additional storage and
PICO-APL4 is designed to efficiently and effectively provide everything users need in iota Gateway factory automation applications. Dual Gigabit Ethernet support combined with onboard RAM (memory) and storage is the boa of almost every competitor
Product Code | PICO-APL4-A10-FD04 |
Form Factor | PICO-ITX |
Card Size (mm) | 100 x 72 |
Cooling | Optional: Heat Spreader |
Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 GHz BM : 1105 |
Processor [CPU] Family | Intel® Celeron® |
RAM [System Memory] | 2 GB Onboard |
SSD/HDD/mSATA/M.2 | SATA3 x 1 | M.2 M Key x 1 | eMMC 32 GB |
LAN/Ethernet | GbE x 2 |
USB 3.0 | x 2 |
USB 2.0 | x 2 |
RS 232 Serial Port | x 1 |
RS 232/422/485 Serial Port | x 1 |
Digital I/O | DIO 4 bit |
Video Output | HDMI x 1 |
Expansion Slot | M.2 E Key x 1 |
Supply voltage | DC 12V |
Operating temperature | 0°C / 60°C |
Certificates | CE |
Supported Operating Systems | Windows® 10 IoT | Pro | Linux | License Not Included in the Price. |
