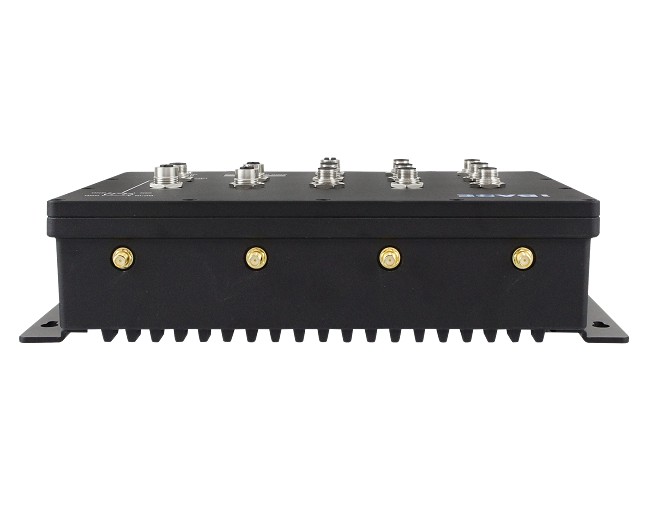

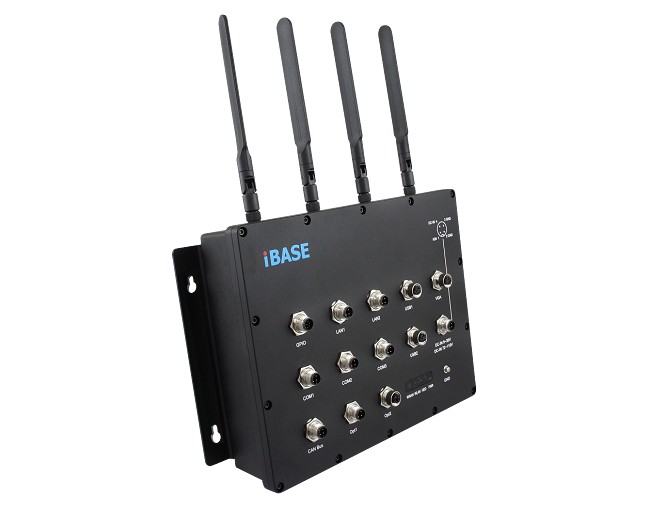

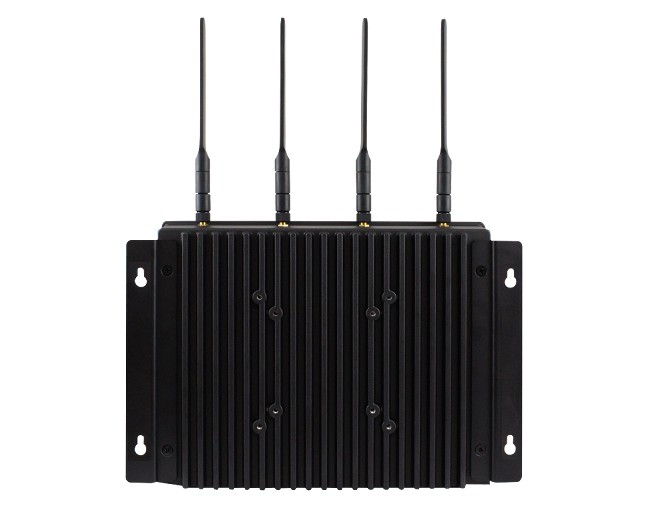

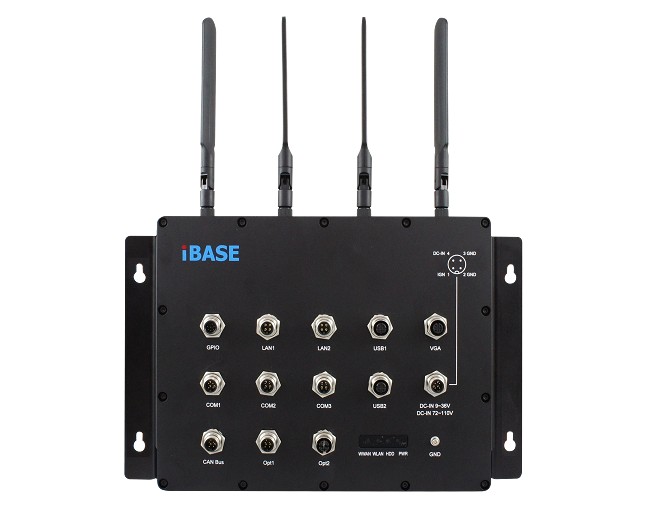

MPT-3000RP
Brand: IBASE
Categories: Smart Transportation Products
The MPT-3000RP Fanless Embedded PC is specifically developed for railway applications. Recently awarded the Taiwan Excellence award, this EN50155-TX certified and IP67 rated system offers water and shock resistance for outdoor applications and meets the Internet of Intelligent Vehicles IIoV requirements.
The system has a robust and reliable design with robust M12 connectors that provide safe connection and error-free data transmission for the operating environment of railway vehicles. Operating temperature from -40°C to 70°C and railway standards and harsh application conditions
The MPT-3000RP rail computer is powered by the Intel® Atom™ E3845 processor with onboard 4GB DDR3L-1333 memory. The internal M12 connectors feature 2x GbE, 1x VGA, 3x COM, 1x power, 1x GPIO and 1x CAN Bus. The computer platform is a full vehicle
Features
| Product Code | MPT-3000RP |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Atom® E3845 4 Core 1.91 GHz | BM : 1130 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 4 GB Standart 4 GB DDR3L |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 64 GB Standart |
| LAN/Ethernet | GbE x 2 [M12] |
| USB 3.0 | x 1 |
| USB 2.0 | x 2 [M12] |
| RS 232 Serial Port | x 2 [M12] |
| RS 232/422/485 Serial Port | x 1 [[M12]] |
| Video Output | VGA x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 3 | M.2 E Key x 1 | PCIe [x1] x 1 | PCIe [x1] x 1 |
| Mounting Type | Custom Mount |
| Supply Voltage | DC 9-36 V |
| Working temperature | -40°C ~ 70°C |
| External Dimensions (mm) | 256 x 182 x 68 |
| Body Material | Aluminum |
| Certificates | CE | FCC | EN50155 |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
