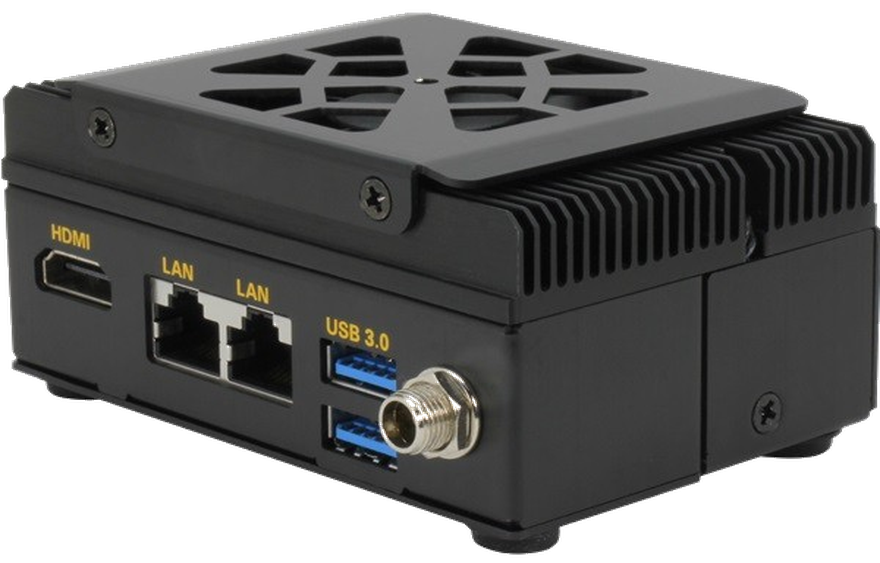

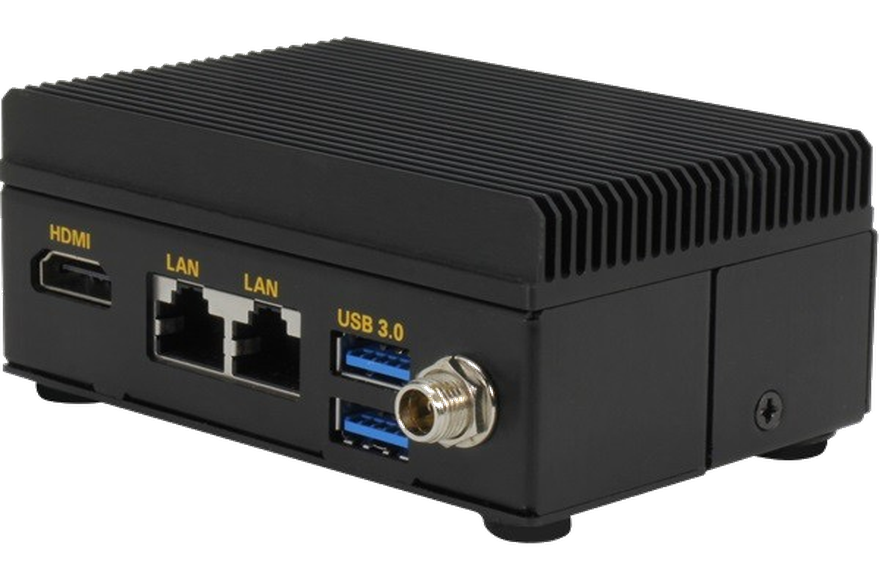

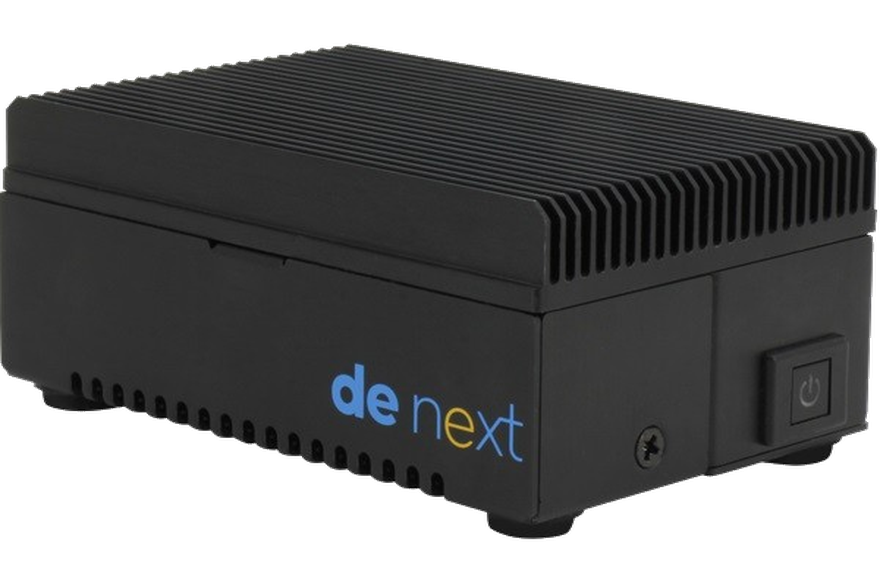

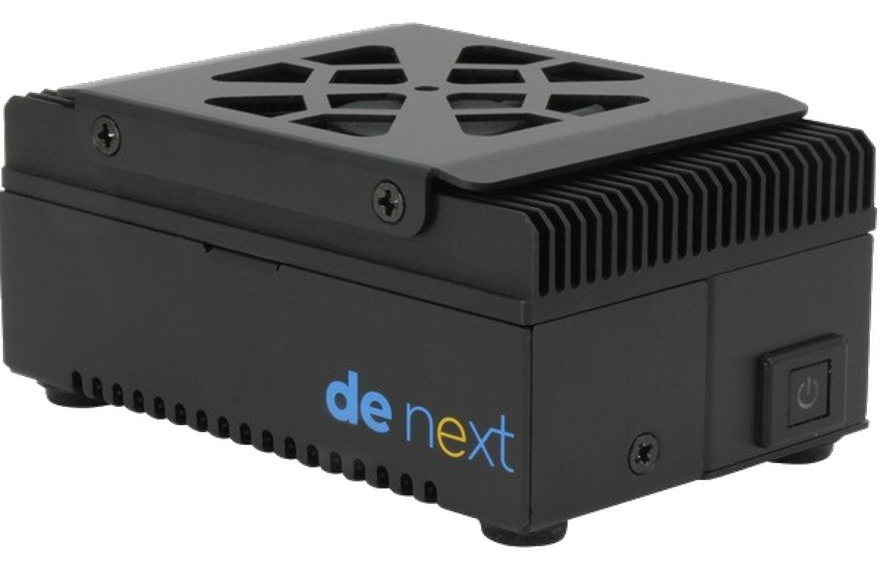

deNEXT-TGU8-EBX-A10-A002
Brand: AAEON [An ASUS Co.]
Categories:
deNEXT-TGU8-EBX-A10-A002 is a compact motherboard designed for Industrial control, IoT and edge computing applications.
It provides high performance with low power consumption with its Intel® Core™ i5-1145G7E 4 Core 2.60 GHz processor.
16 GB onboard LPDDR4 RAM support offers expansion with M.2 2280 M Key (PCIe x2) storage option.
It has powerful connectivity options with 2.5 GbE x 1 and GbE x 1 LAN ports, USB 3.2 x 2, HDMI 1.4b video output.
With DC 12V power supply, -10°C ~ 50°C operating temperature and CE certification, it is compatible with Windows 10, Windows 11 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | deNEXT-TGU8-EBX-A10-A002 |
| Form Factor | deNEXT System |
| Card Size (mm) | 95.5 x 69.5 x 45.4 |
| Processor [CPU] | Intel® Core™ i5-1145G7E 4 Core 2.60 / 4.10 GHz | BM : 9900 |
| Processor [CPU] Family | Intel® Core™ i5 11. Gen |
| RAM [System Memory] | 16 GB Onboard LPDDR4 |
| SSD/HDD/mSATA/M.2 | M.2 2280 M key (PCIe[x2] x 1) |
| LAN/Ethernet | 2.5 GbE x 1 , GbE x 1 |
| USB 3.2 | x 2 |
| Video Output | HDMI 1.4b x 1, up to 3840 x 2160 @30Hz |
| Expansion Slot | M.2 2280 M-Key x 1 (PCIe 4.0 [x2] x 1) |
| TPM | FTPM |
| 4G - LTE | Opsiyonel |
| Supply voltage | DC 12V |
| Working temperature | -10°C ~ 50°C |
| External Dimensions (mm) | 95.5 x 69.5 x 45.4 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
