VPC-3350S-IS-A12-00
Brand: AAEON [An ASUS Co.]
Categories: E-Mark Certified Vehicle Box PC
Multiple PoE and Fanless Device with Intel® Pentium®/ Celeron®/ Atom™ Processors

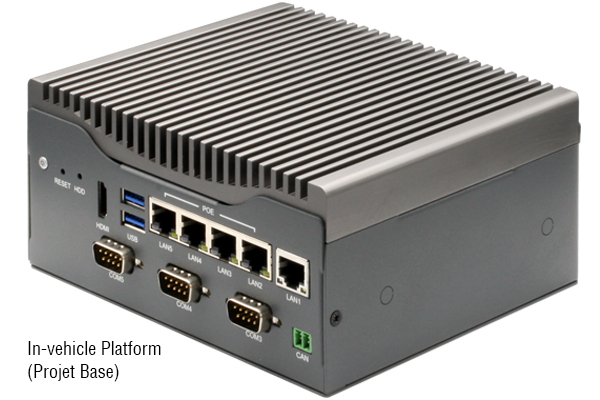

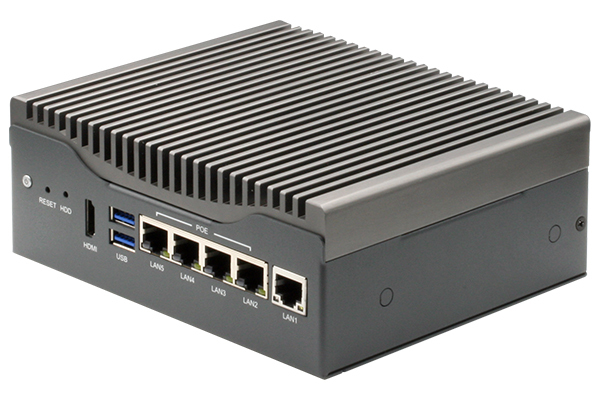

AAEON's VPC-3350S Mobile NVR offers users choice, flexibility and customization not offered with other Mobile NVRs.
The VPC-3350S features the Intel® Atom® x5 E3940 processor (formerly Apollo Lake) as standard, with Pentium® N4200, Celeron® N3350 and Atom® x7 E3950 options available.
The key feature of the VPC-3350S is four PoE Ports, allowing the system to be connected to a wide range of devices.
Features
Mobile Industrial Platform
DDR3L 1866, Single Channel SODIMM x 1, Non-ECC (Max.8GB, up to 1600MHz)
Intel® Integrated Graphics Engine Supports Two Displays with HDMI x 1, DP x 1
Intel® Ethernet Connection x 5 Port (includes 4 x PoE Port)
Full Mini-PCIe Socket x 2 (USB + PCIe); (Support up to Mini-PCIe Socket x 4, In-car platform)
Built-in CANBus, GPS and G-Sensor (In-vehicle platform)
eMark Compliance Available on a Project Basis
Features
| Product Code | VPC-3350S-IS-A12-00 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Atom™ x5-E3940 4 Core 1.60 GHz BM : 1970 |
| Processor [CPU] Family | Intel® Atom™ |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | 32 GB eMMC | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 1 + PoE x 4 |
| USB 3.2 | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 + DP x 1 |
| Supply voltage | DC 12V - 24V |
| Operating temperature | -20°C / 70°C |
| External Dimensions (mm) | 160 x 134 x 62 |
| Body Material | Aluminum |
| Certificates | CE | FCC | E-Mark |
| Supported Operating Systems | Windows® 10 IoT | Pro | Linux | License Not Included in the Price. |
