UPX-WHLI3-A20-08064
Brand: AAEON [An ASUS Co.]
Categories: UP XTREME

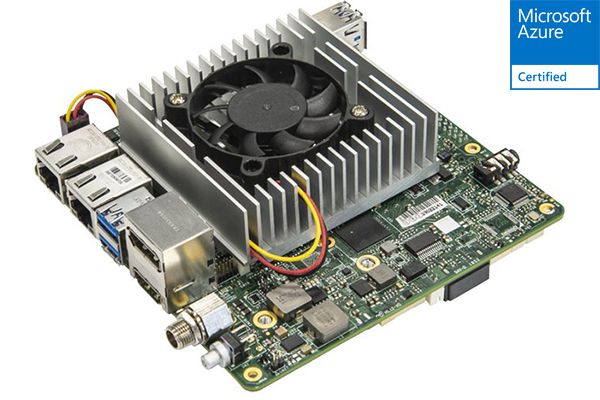

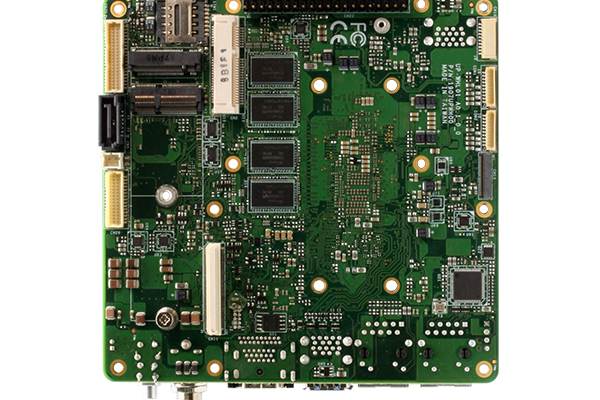

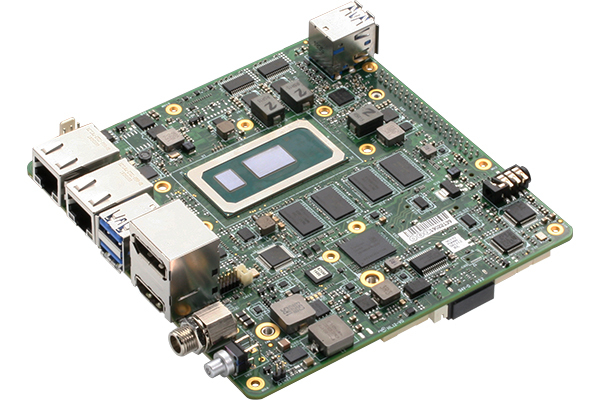

UPX-WHLI3-A20-08064 is a powerful developer motherboard with an 8th Generation Intel® Core™ i7 processor and expandable memory capacity.
With 16 GB RAM and 64 GB eMMC storage capacity, it provides fast data access.
It offers a variety of video and network connectivity options with dual GbE ports and HDMI output.
It facilitates customization by providing expansion options with 40-pin HAT and M.2 slots.
It has the capacity to operate in the temperature range of -10°C to 55°C.
UP Board UP 3G LINE
AAEON's UP series helps professional developers bring their ideas to life by offering innovative and reliable single board computers (SBCs) equipped with the latest Intel® technology.
The UP team aims to innovate through integrated solutions for various business models. It works closely with leaders in vertical markets to bring projects to mass production and encourages developers to share their ideas through its extensive online community.
The UP series is ideal for applications such as robotics, drones, machine vision, smart homes, e-learning, digital signage, smart vehicles and the Internet of Things. All UP products feature the same 40-pin HAT structure as the Raspberry Pi, allowing existing applications to be easily ported to the UP.
Features
| Product Code | UPX-WHLI3-A20-08064 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i7-8665UE 4 Core 1.70 GHz | BM : 5260 |
| Processor [CPU] Family | Intel® Core™ i7 8. Gen |
| RAM [System Memory] | 8 GB |
| SSD/HDD/mSATA/M.2 | 64 GB eMMC |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 1 |
| RS 232 Serial Port | x 2 |
| Video Output | HDMI x 1 + DP x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B+M Key x 1 | Mini-PCIe x 1 | 100 pins x 1 | 40 pin LINE |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
