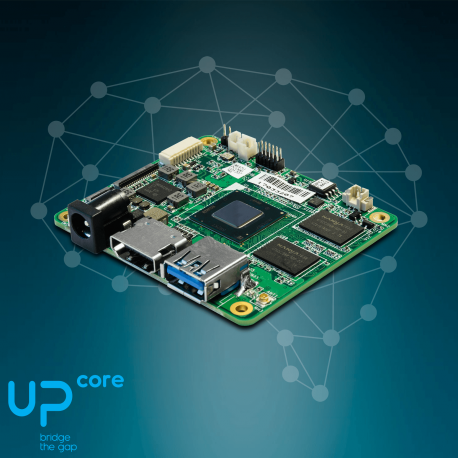

UP Core is a miniature board of the new tablet technology with high performance and low power consumption: Intel® Atom™ Z8350 x5 Processors (codenamed Cherry Trail) from 1.92ghz to 64 bit.

Extremely high-performance onboard GPU and 3D graphics with the new Intel HD 400 up to 500MHz Gen 8 12 Governance Units.

UP Core is equipped with 1 GB / 2 GB / 4 GB DDR3L RAM and 16 GB / 32 GB / 64 GB eMMC. The 100-pin docking Connector UP Core offers the freedom to create your own carrier board manufacturer. 2x + 1x USB 2.0 Port header UART, 1x USB 3.0

When it comes to security, UP Core has Intel security features required for professional applications such as Intel AES New Instructions and Intel Identity Protection Technology IoT.

It's up to you to choose the operating system that best suits your application. We activate it to our Group by supporting it via UP with Android 6.Marshmallow CPU, Microsoft Windows 10 and Linux support.

UP Core provides flexibility for many applications with a standard industrial PC operating temperature range of 32-140°F / 0-60°C.
