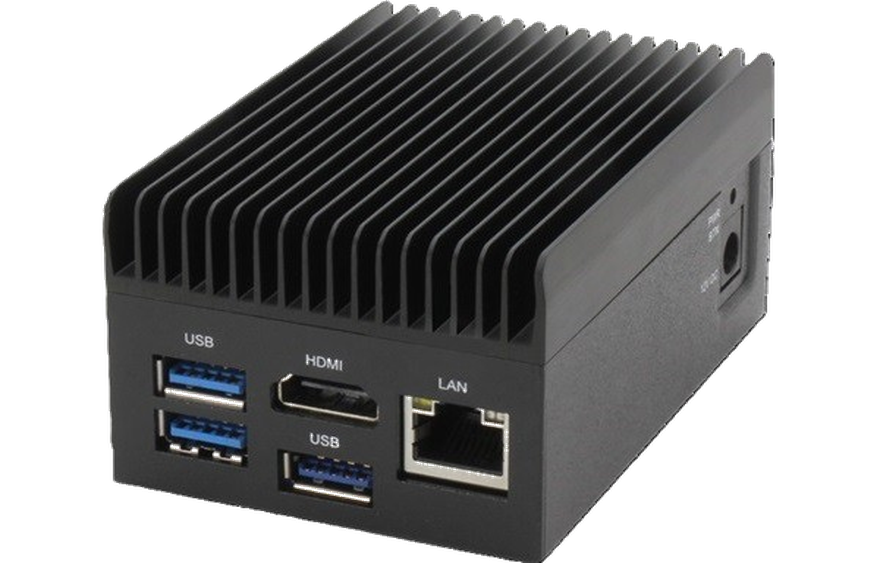

UP-EDGE-ADLN50-A10-0432

Brand: AAEON [An ASUS Co.]
Categories: UP 7000 EDGE

UP-EDGE-ADLN50-A10-0432, Powered by Intel® N50 processor, this device delivers high performance for demanding edge workloads.

It provides enhanced productivity with 4 GB RAM and 32 GB storage.

USB 3.2 and HDMI outputs make the device ideal for multi-display use.

Equipped with complete security features, this system can be used safely in various industrial applications.

It is an efficient solution for industrial environments with 30W~36W energy consumption.

UP Board UP 3G LINE

AAEON's UP series helps professional developers bring their ideas to life by offering innovative and reliable single board computers (SBCs) equipped with the latest Intel® technology.

The UP team aims to innovate through integrated solutions for various business models. It works closely with leaders in vertical markets to bring projects to mass production and encourages developers to share their ideas through its extensive online community.

The UP series is ideal for applications such as robotics, drones, machine vision, smart homes, e-learning, digital signage, smart vehicles and the Internet of Things. All UP products feature the same 40-pin HAT structure as the Raspberry Pi, allowing existing applications to be easily ported to the UP.


Features


Product Code UP-EDGE-ADLN50-A10-0432

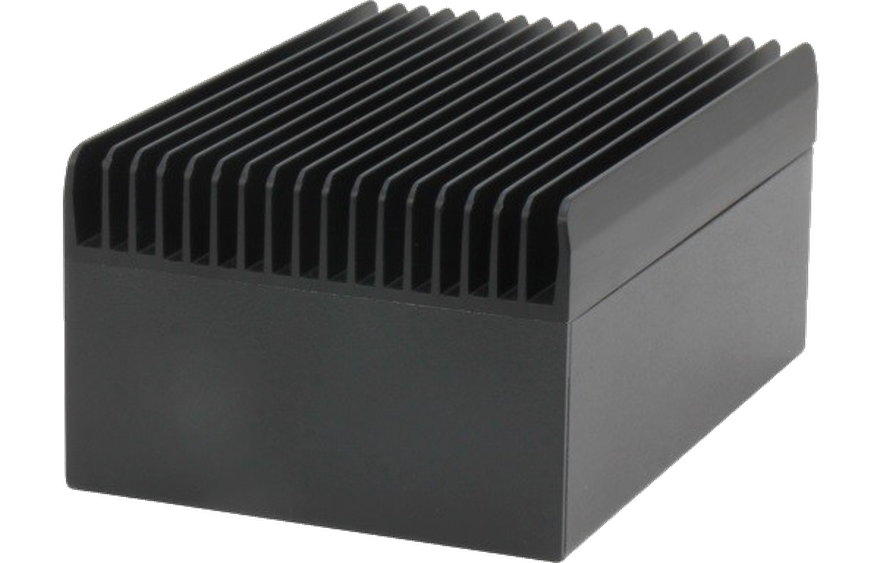

Cooling Without Fan
Processor [CPU] Intel® N50 2 Core 1.00 / 3.40 GHz | BM : 2900
Processor [CPU] Family Intel® Processor N®
RAM [System Memory] 4 GB
SSD/HDD/mSATA/M.2 32 GB
LAN/Ethernet GbE x 1
USB 3.2 x 3
Video Output HDMI x 1
Expansion Slot HDMI 1.4b/USB 3.2 Gen 2 STACK Connector x 1 (Type-A)Power Button x 1
Power Consumption 30W~36W
Mounting Type VESA Mount
Supply voltage DC 12 V
Working temperature 0°C ~ 55°C
External Dimensions (mm) 3.62” x 2.52” x 1.78” (92 x 64 x 45.2)
Weight (kg) 1
Certificates CE/FCC Class A, RoHS Compliant, REACH
Supported Operating Systems Windows®10 | Linux Ubuntu 20.04 | Linux Yocto | Operating system sold separately from license.
