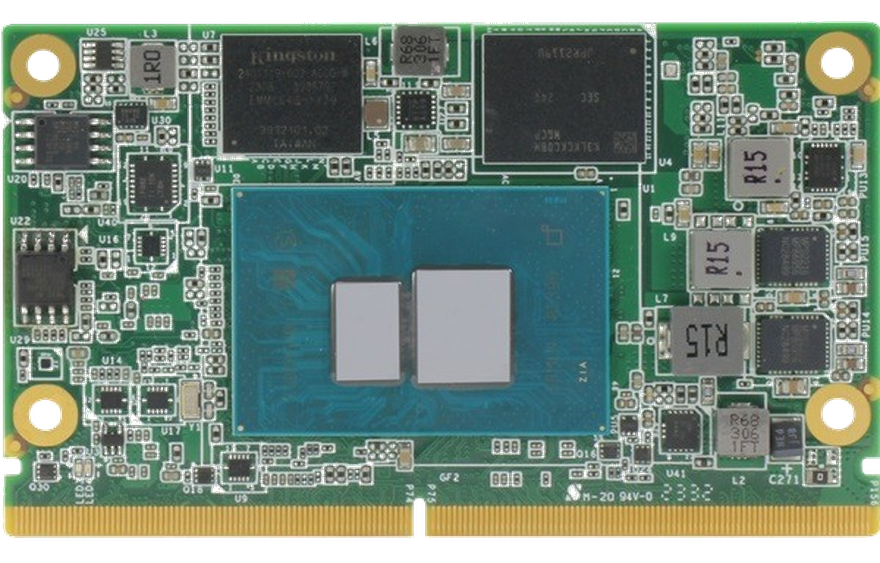

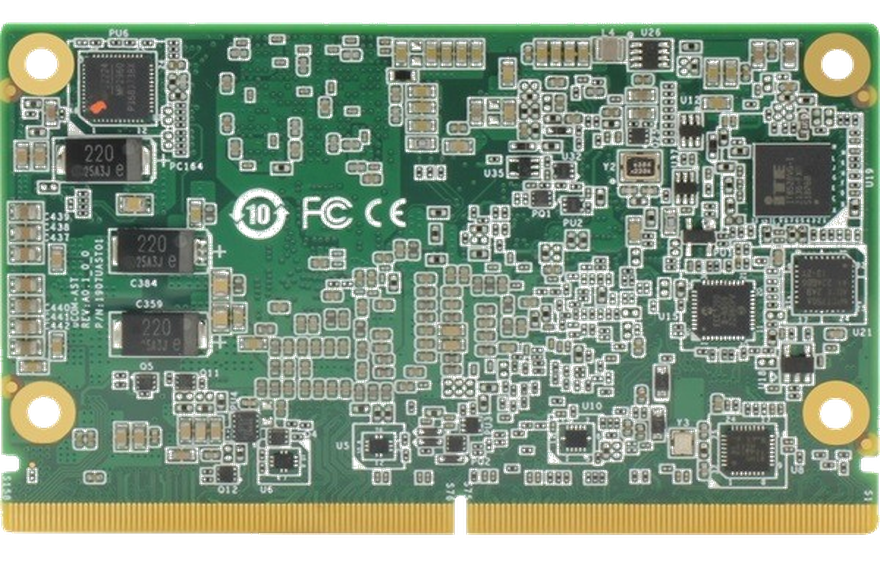

UCOM-ADN-B10-0003
Brand: AAEON [An ASUS Co.]
Categories: COM Express Mini for you
The SMARC module features the Intel Atom® Processor X Series, Intel® Processor N-series, and Intel® Core™ i3-N305 Processor.
Comes with LPDDR5x memory up to 8GB and eMMC storage up to 64GB.
Supports 2 DP++ and 1 eDP for display output. Provides 2 USB 3.2 Gen 2 and 6 USB 2.0 ports for connectivity.
Equipped with 3 PCIe Gen 3 [x1] slots and supports up to 1x PCIe [x2]. Features dual Intel® Ethernet Controller I226-V/IT.
Operates on a 5V input. The SMARC module has a compact size of 82mm x 50mm.
Features
| Product Code | UCOM-ADN-B10-0003 |
| Form Factor | SMARC |
| Card Size (mm) | 82 x 50 |
| Processor [CPU] | Intel® Atom® x7425E 4 Core 3.40 GHz | BM : 5770 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 8 GB Onboard LPDDR5 |
| SSD/HDD/mSATA/M.2 | 64 GB eMMC |
| LAN/Ethernet | Intel® i226IT x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 6 |
| Digital I/O | GPIO |
| Video Output | eDP x 1, DP++ x 2 |
| LVDS | eDP x 1 |
| Expansion Slot | PCIe [x1] x 3 |
| SMBUS | x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Optional |
| Supply Voltage | DC 12 V |
| Operating temperature | -20°C ~ 70°C |
| External Dimensions (mm) | 82 x 50 |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Linux Ubuntu 22.04 | Licence Price is excluded. |
