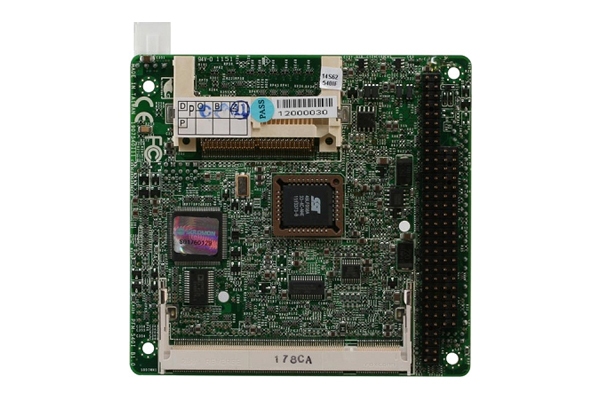

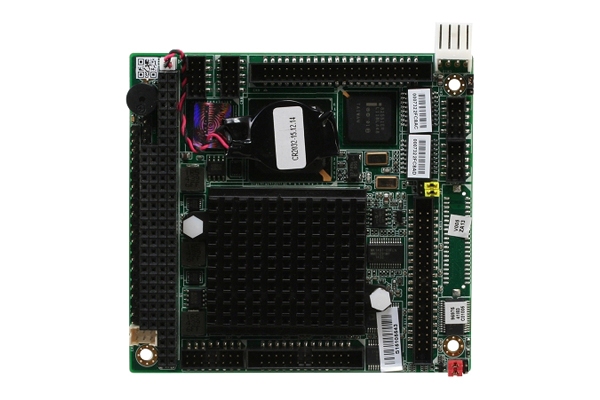

TF-PFM-540I-A10
Brand: AAEON [An ASUS Co.]
Categories: PC / 104
PFM-540 Rev. A features 104 AMD® Geode™ LX800 processors that cost less than other PC/CPU modules on the market. This model supports DDR333 SODIMM Memory max. 1 GB and 512 MB DDR333 to DDR400. PFM-540 Rev. A.
Although it is a small panel, it provides all the functions that customers demand. Using the Rev.a PFM-540 chipset, this motherboard delivers peak performance using AMD® LX800 and cs5536.
It has one 10/100Base-TX Ethernet port, four USB 2.0 ports, two Serial Ports, one parallel port, one IR interface, watchdog timer clock and PC/104 Expansion feature.
Features
| Product Code | TF-PFM-540I-A10 |
| Form Factor | PC/104 |
| Card Size (mm) | 90 x 96 |
| Cooling | Fanless |
| Processor [CPU] | AMD® GEODE™ LX800 2 Core 0.50 GHz BM : 252 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 1 GB] |
| SSD/HDD/mSATA/M.2 | EIDE x 1 | CFast x 1 |
| LAN/Ethernet | FE x 1 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | CRT x 1 |
| Expansion Slot | PC/104 x 1 |
| Supply voltage | DC 5V AT / ATX |
| Operating temperature | 0°C / 60°C |
| Certificates | CE |
