SW-101-N
Brand: IBASE
Categories: Signage Player

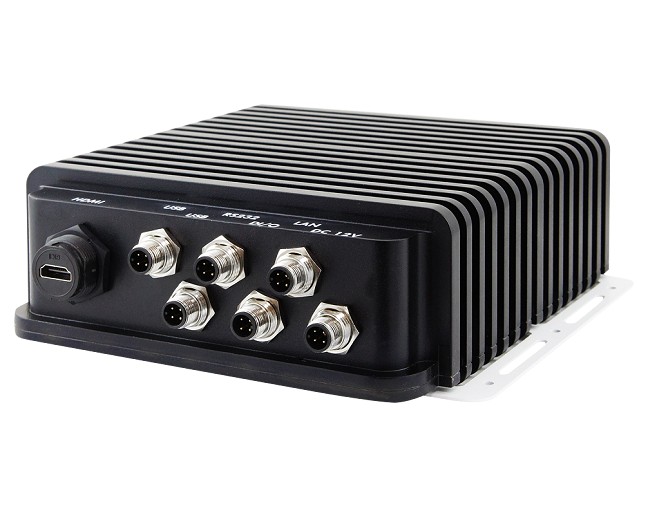

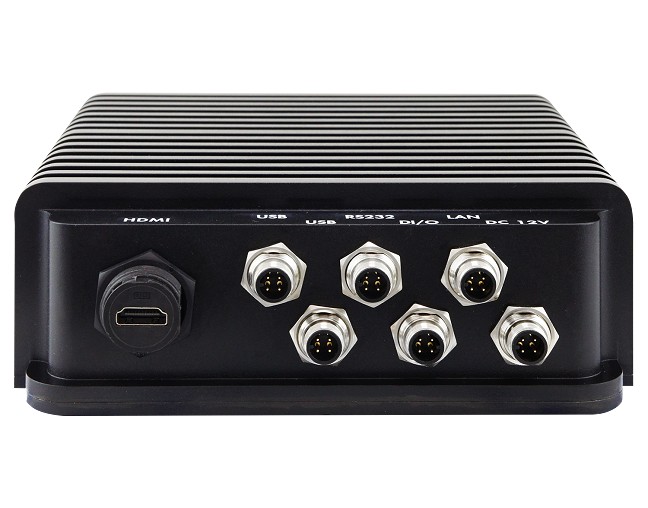

SW-101-N is a waterproof digital signage player designed for both indoor and harsh outdoor environments. This rugged Fanless signage player is integrated with 1.91GHz Intel® Atom™ Processor E3845 Quad Core Processor and Intel® HD graphics (Gen 7-LP) 4EU.
SW-101-N is built to withstand dust, water and extreme temperatures to ensure stable operation and reliability of the system in harsh industrial environments. It meets IP68 standards and can withstand immersion in water at a depth of 1.5 meters for 30 minutes.
SW-101-N supports IBASE unique iCONTROL and Observer technologies for intelligent control and remote monitoring functions including automatic on/off scheduling, power sustain, system temperature/voltage remote monitoring and low temperature boot protection
Features
| Product Code | SW-101-N |
| Processor [CPU] | Intel® Atom® E3845 4 Core 1.91 GHz | BM : 1130 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 4 GB Default |
| SSD/HDD/mSATA/M.2 | 64 GB mSATA |
| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x 2 [M12] |
| RS 232 Serial Port | x 1 [M12] |
| Video Output | HDMI x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12 V |
| Operating temperature | -40°C ~ 75°C |
| External Dimensions (mm) | 227 x 192 x 70 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Linux | Licence Price is excluded. |
