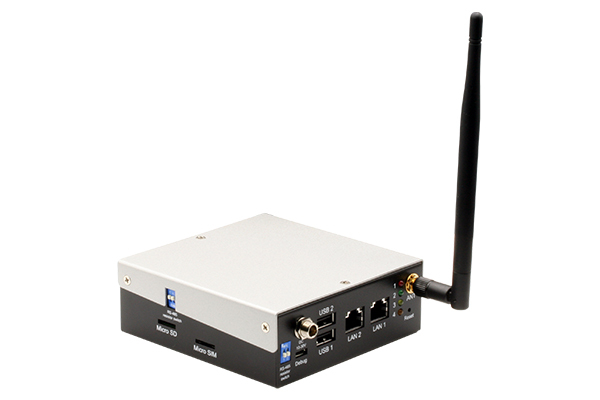

Standard IoT Gateway System with onboard ARM® Cortex-A8 800 MHz RISC Processor

The SRG-3352C MQTT Gateway is powered by the Arm® Cortex-A8 800 MHz RISC processor. This innovative processor enables the system to enable energy-efficient Industrial IoT deployments, even allowing the system to be deployed on solar or battery power. Thanks to its low thermal output, the system can operate in a wide temperature range from 0°C to 60°C without loss of performance.

The SRG-3352C provides reliable and cost-effective edge gateway operations with low upfront costs and fewer overtime requirements. To connect from the edge to the cloud, the SRG-3352C supports 3G/4G LTE as well as NB-IoT to help reduce operator costs.

SRG-3352C helps you get your Industrial IoT project up and running quickly with pre-installed Modbus and MQTT libraries. The system also has an onboard Wi-Fi and Bluetooth module to support wireless network deployments and comes with an extensive I/O layout that includes two Gigabit Ethernet Ports, USB 2.0 and RS-485 ports.

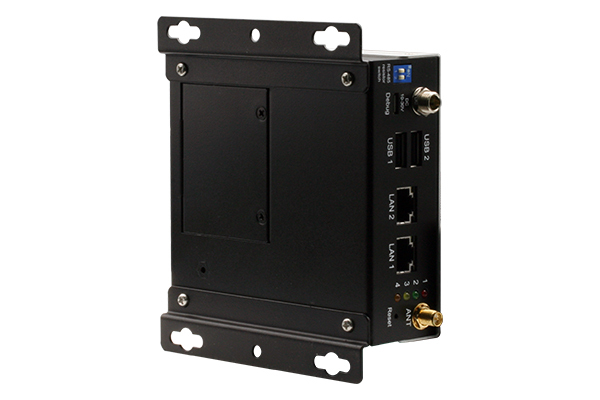

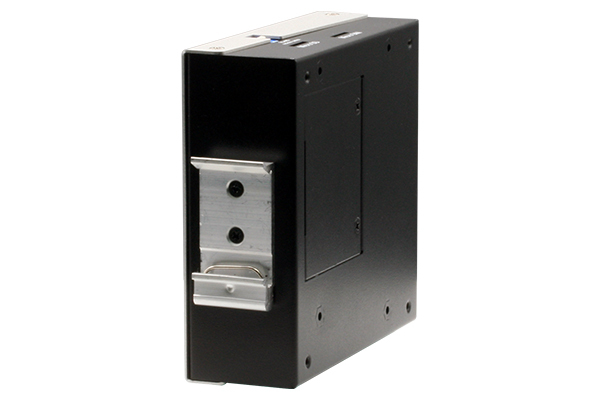

Optional wall mount and DIN rail kits allow the SRG-3352C to be deployed wherever it is needed. The SRG-3352C is also compatible with popular cloud services such as AWS, Azure and ARM® Pelion, or can be configured to work with the customer's own cloud platform.

Features

• ARM® Cortex-A8 800 MHz RISC Processor

• onboard DDR3L 1 GB / eMMC 8 GB

• Gigabit Ethernet Port x 2

• USB 2.0 x 2, RS-485 x 2, Programmable LED x 4

• RTC x 1, Micro SD Slot x 1, SIM Slot x 1

• Mini-PCIe Connector (for RF Module) x 1

• NB-IoT Connector x 1

• Board to Board connector x 1

• Debug Port x 1

• DC9-30V Power Input

• onboard WiFi/Bluetooth Module

• Pre-install Linux Debian

• Supports Modbus / MQTT Library (on request)
