SI-614

Brand: IBASE
Categories: Signage Player

The SI-614 digital signage player supports NVIDIA® MXM GeForce GTX 10 Series graphics cards and 7th Generation Intel® Core™ desktop processors with incredible speed, power efficiency, and 3x the performance of previous generation graphics cards.

The SI-614 digital signage player is designed to empower properties to connect and communicate with their guests, customers and audiences, reliably delivering high-quality live video and digital signage content.

In IBASE's SI-614 model, users have the option to choose the type of NVIDIA® GeForce GTX 10 Series graphics cards to enable flexible deployments according to their needs, including GTX 1080 8GD5x, GRX 1070 8GD5, GTX 1060 6GD5, GTX 1050TI-LN

The SI-614 has dimensions of 256mm (W) x 160mm (D) x 69mm (H) and can be mounted with the standard system bracket. The SI-614M model comes with the system motherboard and 270W power adapter, but does not have a processor and graphics card.


Features


Product Code SI-614
Processor [CPU] Intel® Core™ i5-7500 4 Core 3.40 GHz | BM : 8020
Processor [CPU] Family Intel® Core™ i5 7. Gen
RAM [System Memory] [Max 32 GB]
SSD/HDD/mSATA/M.2 2.5" SATA 128 GB
LAN/Ethernet GbE x 1
USB 3.0 x 4
RS 232 Serial Port x 1

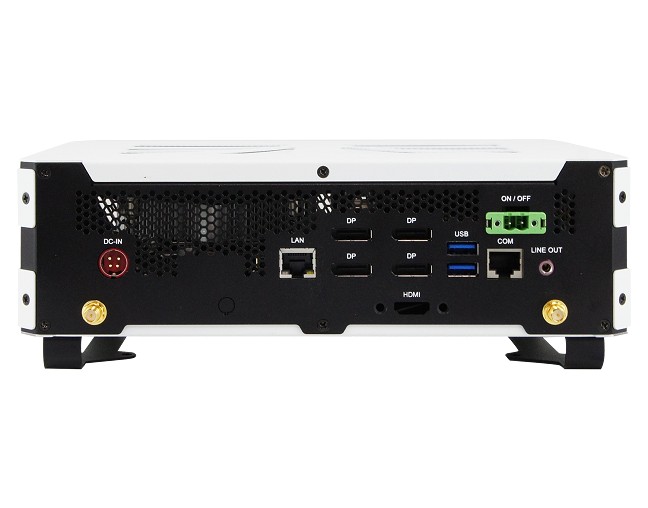

Video Output HDMI x 1 + DP x 4
Expansion Slot Full Size Mini-PCIe | M.2 B Key x 1
Mounting Type Standard system bracket
Supply Voltage DC 9-19 V
Operating temperature 0°C ~ 45°C
External Dimensions (mm) 256 x 160 x 69
Chassie Material Aluminum
Certificates CE | FCC
