SI-22-415
Brand: IBASE
Categories: Signage player
The SI-22 is an ultra-thin digital signage player based on the AMD® Embedded G Series SOC with Radeon™ graphics. It features a 19.5mm thick, Fanless design to ensure long-lasting, 24/7 reliability. SI-22 offers 1080P, ultra HD resolution, suitable for a variety of applications, including advertising and digital menu boards for shopping malls, retail stores, hotels and restaurants.

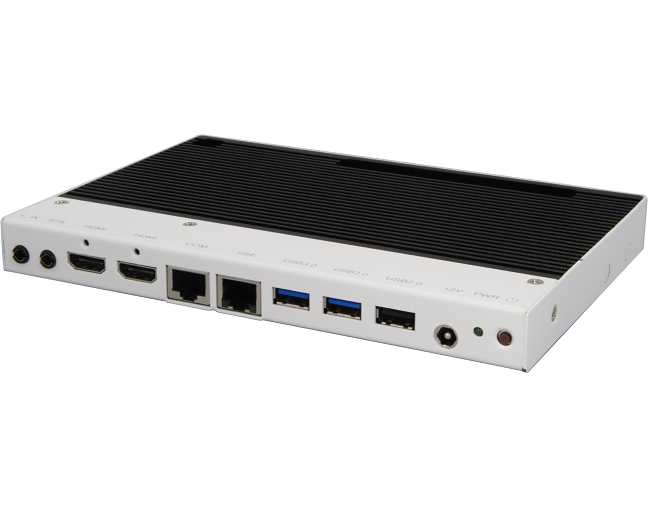

The system is equipped with basic interfaces such as audio, dual HDMI, RS232, GbE LAN, USB and DC jack on the rear panel. Optional solutions are available for 4G, TV tuner, Bluetooth and WiFi connections. DDR3-1600 system memory is expandable up to 8GB. 190mm(W)
Features
| Product Code | SI-22-415 |
| Processor [CPU] | G-Series Quad Core 1.50 GHz |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 64 GB mSATA |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x 2 |
| USB 2.0 | x 1 |
| RS 232 Serial Port | x 1 |
| Video Output | HDMI x 2DVI-I x 1 |
| Expansion Slot | Full Size Mini-PCIe | M.2 E Key x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 12 V |
| Operating temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 190 x 130 x 19.5 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
