SI-122-N
Brand: IBASE
Categories:
The SI-122-N dual HDMI Fanless signage player is equipped with the 3rd Generation AMD® Embedded G Series SoC, which delivers high processing performance and is optimized for demanding graphics requirements.
The latest SI-122-N dual HDMI player delivers smooth, high-resolution video to any screen to deliver the ultimate picture quality to viewers. The SI-122-N provides dynamic information and targeted promotions that can be updated at strategic times of the day.
SI-122-N comes with a power-efficient GX224IJ AMD® Dual-Core SoC processor with AMD® Radeon™ R7E graphics to deliver dynamic and engaging signage content. It features an M.2 B key, Full Size Mini-PCIe, a

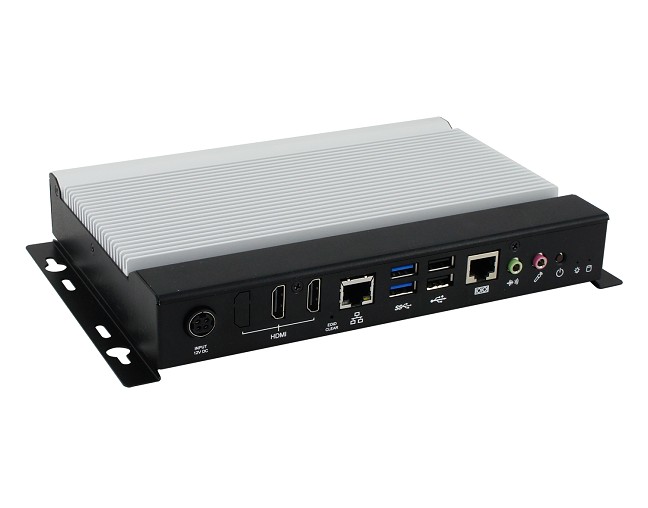

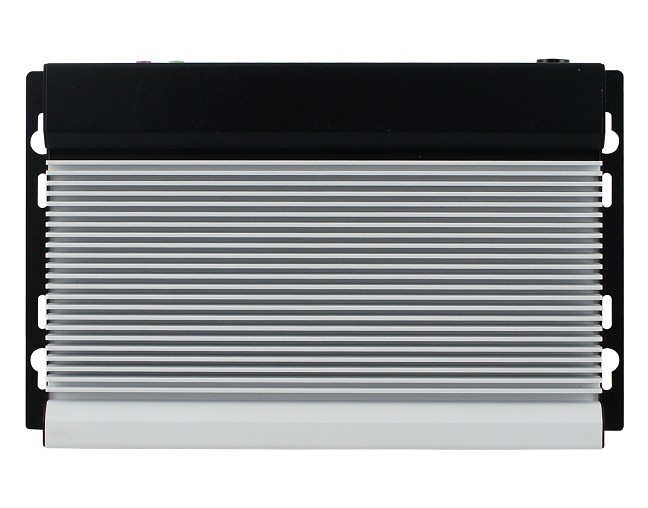

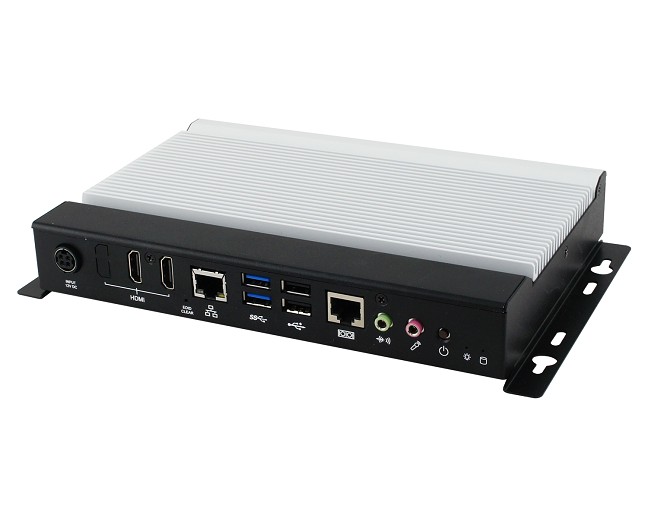

The compact SI-122-N, measuring 216 mm x 150 mm x 33 mm, has a black and white chassis with system bracket. As with other IBASE signage player models, the iSMART features automatic timing and power resume functions as well as safety in case of cable breakage or error.
Features
| Product Code | SI-122-N |
| Processor [CPU] | AMD® GX-224IJ 2 Core 2.40 / 2.80 GHz | BM : 1270 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | 4 GB Standart |
| SSD/HDD/mSATA/M.2 | 64 GB mSATA |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| Video Output | HDMI x 2DVI-I x 1 |
| Expansion Slot | M.2 E Key x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 216 x 150 x 33 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
