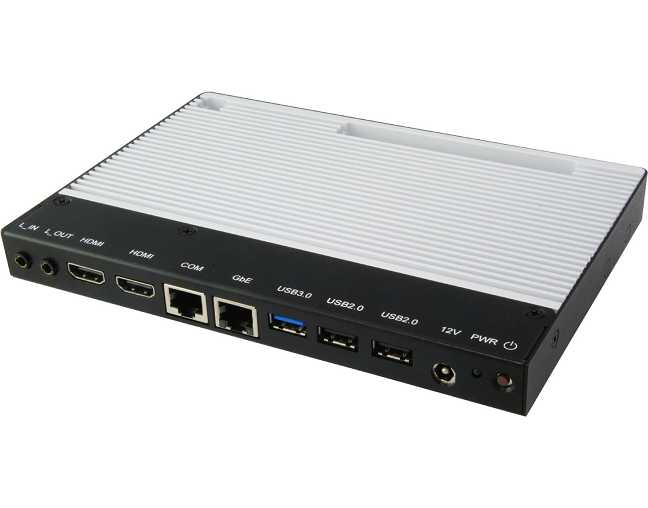

The SI-12 is an ultra-slim signage player and measures just 19.5mm thick. This media player enables retail, food and hospitality segments to deliver engaging and valuable content to target audiences on high-resolution HDMI displays.
The SI-12 digital signage player has been tested to exceed extended operating temperatures (-30°C to +60°C) to meet extreme system reliability requirements allowing use in a wide range of harsh indoor and outdoor environments. Unit, onboard b
The SI-12 features a super-slim chassis that can be installed in the tightest spaces behind displays. A versatile array of connectivity options includes a Gigabit Ethernet, audio, USB 3.0 and 2.0 ports, and high video resolution beyond 1080p systems
Product Code | SI-12 |
Processor [CPU] | Intel® Atom® E3845 4 Core 1.91 GHz | BM : 1130 |
Processor [CPU] Family | Intel® Atom® |
RAM [System Memory] | [Max 8 GB] |
SSD/HDD/mSATA/M.2 | 64 GB mSATA |
LAN/Ethernet | GbE x 1 |
USB 3.0 | x 1 |
USB 2.0 | x 2 |
RS 232 Serial Port | x 1 |
Video Output | HDMI x 2DVI-I x 1 |
Expansion Slot | Full Size Mini-PCIe x 1 |
Mounting Type | Standard system bracket |
Supply Voltage | DC 12 V |
Operating temperature | -30°C ~ 60°C |
External Dimensions (mm) | 190 x 130 x 19.5 |
Chassie Material | Aluminum |
Certificates | CE | FCC |
Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
