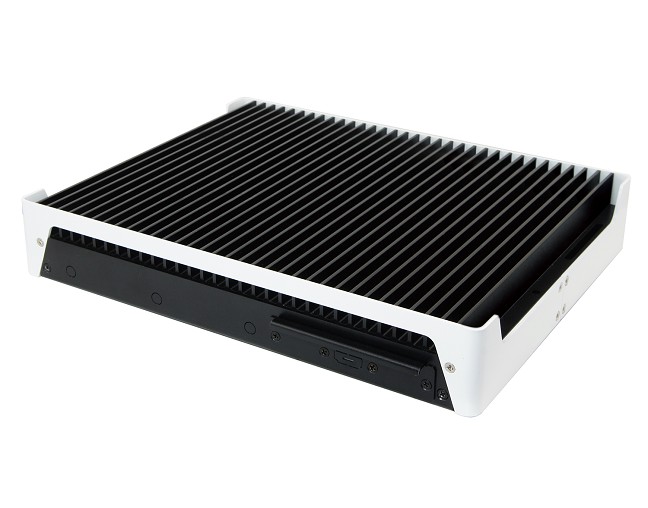

SE-92-I5

Brand: IBASE
Categories: Outdoor/In-vehicle Signage Player

Winner of the 2015 iF DESIGN AWARD, the SE-92 digital signage player is a rugged Fanless system based on a 5th Generation Intel® Core™ processor (codenamed Broadwell U). Offering a wide operating temperature range from -40°C to 75°C and a wide range DC input range of 6V to 32V, this product is specifically built for harsh environments in outdoor and in-vehicle applications.

Using built-in 5th Generation Intel® Core™ processors, the SE-92 delivers significant computing power and plays two images with seamless visual quality without the need for a discrete graphics card. The unit is the structural backbone of the entire system, thermal pipe, airflow divider

The integrated dual DVI-I interface supports a DVI-D or VGA display and has built-in EDID emulation function. Additionally, the SE-92 features up to 16GB of RAM (memory), dual Gigabit Ethernet, a SIM card slot, and iphone for fast system booting and low heat emissions.


Features


Product Code SE-92-I5
Processor [CPU] Intel® Core™ i5-5350U 2 Core 1.80 GHz | BM : 2670
Processor [CPU] Family Intel® Core™ i5 5. Gen
RAM [System Memory] [Max 16 GB]
SSD/HDD/mSATA/M.2 2.5" SATA x 1 | RAID
LAN/Ethernet GbE x 2
USB 3.0 x 2
USB 2.0 x 2
RS 232 Serial Port x 1
Video Output DVI-I x 2
Expansion Slot Full Size Mini-PCIe | M.2 M Key x 1 | M.2 E Key x 1
Mounting Type Standard system bracket
Supply Voltage DC 7-36 V
Operating temperature -40°C ~ 75°C
External Dimensions (mm) 280 x 216 x 46
Chassie Material Aluminum
Certificates CE | FCC
Supported Operating Systems Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded.
