SE-602-N-I7
Brand: IBASE
Categories: Outdoor/In-vehicle Signage Player

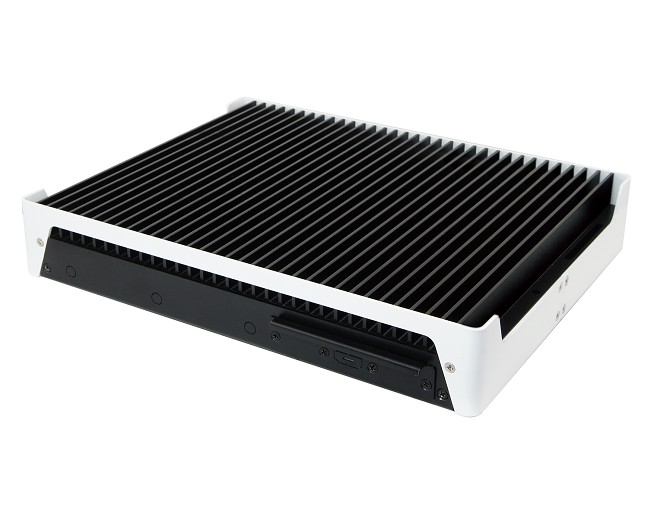

SE-602-N is designed as an outdoor and in-vehicle digital signage system with a wide range of DC power input from 7V – 36V. Powered by 5th Generation Intel® Core™ processors, the SE-602-N is built to withstand sustained vibration and a wide operating temperature range of -40°C to 75°C, making it suitable for outdoor and automotive signage applications.
“Featuring rounded corners and an aluminum backbone frame that works not only as a heat sink but also as an airflow divider and EMI shield, the SE-602-N is built around aesthetics and reliability,” said James Wu, company president of IBASE.
The SE-602-N is currently available in two integrated models and the Intel® Core™ i7-5650U and i5-5350U. Both come with 8GB of system memory and 64GB of wide-temp SSD storage. Options include 80W and 60W wide temperature power adapters with AC/DC 24V output
Features
| Product Code | SE-602-N-I7 |
| Processor [CPU] | Intel® Core™ i7-5650U 2 Core 2.00 GHz | BM : 3000 |
| Processor [CPU] Family | Intel® Core™ i7 5. Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 1 | RAID |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| Video Output | DVI-I x 2 |
| Expansion Slot | Full Size Mini-PCIe x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 7-36 V |
| Operating temperature | -40°C ~ 75°C |
| External Dimensions (mm) | 280 x 216 x 46 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC | CCC |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
