SA-101-NQC
Brand: IBASE
Categories: ARM-based signage player

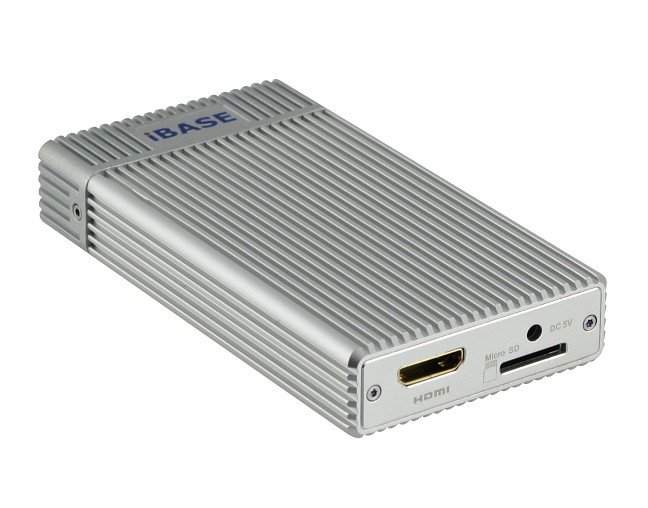

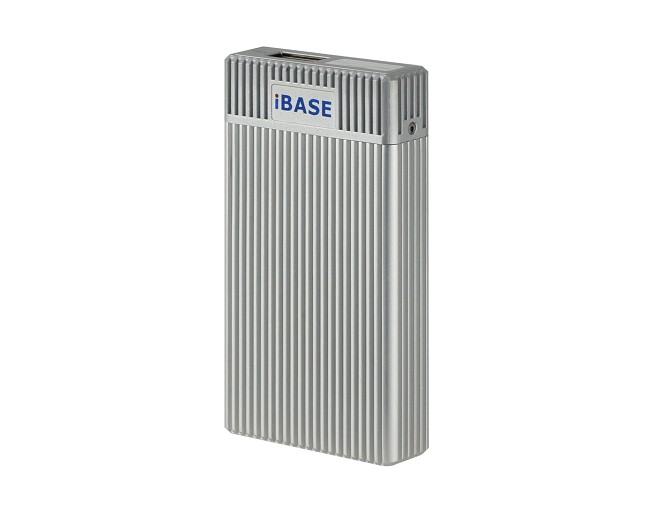

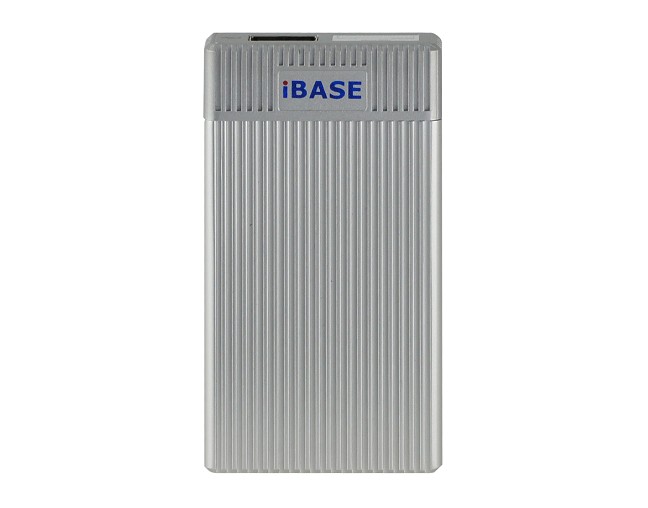

SA-101-N is a business card size Fanless signage player with Mini HDMI (Type C) output. Featuring a compact 8.5 x 4.5 x 1.5cm aluminum body, this player supports the i.MX6 Dual/Quad CPU with onboard DDR3L memory and an eMMC HAND flash. The SA-101-N comes with ADplayer, 5V DC input power input and supports 802.11 a/b/g/n, a USB and a MicroSD card slot.
Features
| Product Code | SA-101-NQC |
| Processor [CPU] | IMX6QC 1 GHz |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | 8 GB eMMC |
| USB 2.0 | x 1 |
| Video Output | Mini-HDMI x 1 |
| Mounting Type | Standard system bracket |
| Supply Voltage | DC 5 V |
| Operating temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 85 x 45 x 15 |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Windows 7 | Windows XP | Linux | Licence Price is excluded. |
