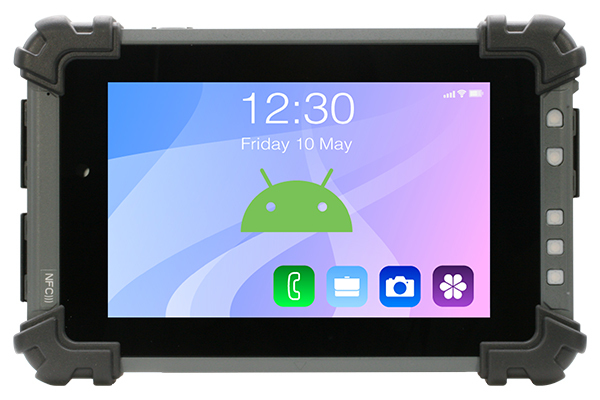

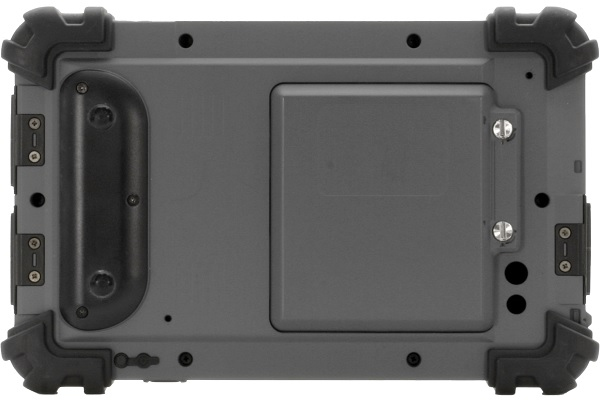

RTC-710RK-RH0004
Brand: AAEON [An ASUS Co.]
Categories: Industrial Tablet PC
1.60 GHz Quad Core Processor ARM Based Android™ Rugged Tablet PC
• 7" WXGA (1280 x 800) 700 cd/m² / 300 cd/m² TFT LCD Screen
• Rockchip RK3399 processor
• onboard LPDDR4 RAM 2 GB (standard) / 4 GB (Optional)
• 16 GB eMMC (standard) / 32 GB (Optional)
• Projected Capacitive [PCAP] Multi-Touch Screen
• WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
• 8MP front and 8MP rear camera
• 10/100/1000 Base-T UART Port + I/O Module via RJ45 (Optional)
• USB 3.2 Gen1 Type-C x 1, Type-A USB 2.00 x 1
• I/O via 2D Barcode Scanner Module (Optional)
• NFC (HF RFID) Reader (Optional)
• Up to 3 GNSS, GPS + Galileo (default), GLONASS, Beidou (Optional)
• Working Status Replaceable Battery + Internal Battery, Battery Capacity Up to 44W
• MIL-STD-810G, IP65 compliant, Drop 122 cm
• Programmable function keys, F1, F2, F3, volume on/off, LED backlight
• Android 1.8
Features
| Product Code | RTC-710RK-RH0004 |
| Screen size | 7" TFT LCD |
| Resolution | 1280 x 800 |
| Screen Format | 16 | 10 |
| Brightness | 700 cd/m² |
| Contrast | 500 | 1 |
| Touch Type | Projected Kapasitif [P-CAP] |
| Cooling | Fanless |
| Processor [CPU] | RockChip™ RK3399 (+) Dual Core Cortex-A72 1.80 GHz (+) Cortex-A53 Quad Core 1.40 GHz |
| Processor [CPU] Family | RockChip™ RK3399 |
| RAM [System Memory] | 2 GB Onboard |
| SSD/HDD/mSATA/M.2 | 16 GB eMMC |
| LAN/Ethernet | Opsiyonel |
| USB 3.2 | Type C x 1 |
| USB 2.0 | x 1 |
| UART | x 1 |
| Audio Output | 3.5 mm Line Out |
| Expansion Slot | Micro SD x 1 |
| Wireless | 802.11 b/g/n |
| Bluetooth | V4.2 (EDR (+) BLE) |
| Front camera | 8 MP |
| Rear Camera | 8 MP Flashlight |
| 4G - LTE | Opsiyonel |
| GPS | (+) |
| G Sensor | (+) |
| 2D/QR Code Reader | (+) |
| Light Sensor x 1 | (+) |
| E-Compass | (+) |
| Gyro-Sensor | (+) |
| Battery | 7.2V/4540mAh/32.7W |
| docking | Opsiyonel |
| Supply voltage | DC 12V |
| Operating temperature | -20°C / 60°C |
| External Dimensions (mm) | 219.8 x 138.8 x 23.9 |
| Weight (kg) | 0.8 |
| IP Protection Class | IP65 |
| Certificates | CE | FCC | MIL-STD-810G | TELEC |
| Supported Operating Systems | Android 10.x | Android 11.x |
