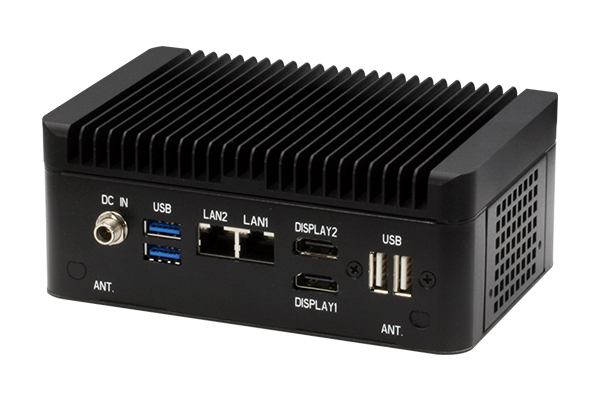

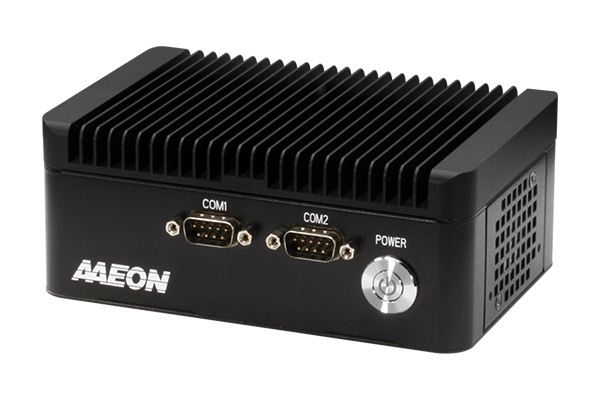

PICO-WHU4-SEMI-A11-S002
Brand: AAEON [An ASUS Co.]
Categories: Plug & Play Box PC
PICO-ITX onboard, 8. Intel® Core™ i7/i5/i3/Celeron processor powered by compact computers
Features
8th Generation Intel® Core™ i7 / i5 / i3 / Celeron Processors
Non-ECC SODIMM slots DDR4 x 1, up to 32 GB
Dual HDMI Port (HDMI 1.4b), GB x 2
SATA 6.0 Gb/s x 1, 2.5" SSD support
Full Size mSATA / mini-PCIe x 1 (select according to BIOS), M.2 2230 (E key) x 1
Gen2 x 2 USB 3.2, USB 2.0 x 2
RS-232/422/485*2 (Optional)
Lockable 12VDC
Features
| Product Code | PICO-WHU4-SEMI-A11-S002 |
| Cooling | Heat Spreader + Fan |
| Processor [CPU] | Intel® Core™ i3-8145U 2 Core 2.10 GHz | BM : 3820 |
| Processor [CPU] Family | Intel® Core™ i3 8. Gen |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 2 | SATA3 x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | Optional |
| Video Output | HDMI x 2DVI-I x 1 |
| Expansion Slot | M.2 E Key x 1 |
| Supply Voltage | DC 12 V |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 150 x 100 x 60 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Linux | Licence Price is excluded. |
