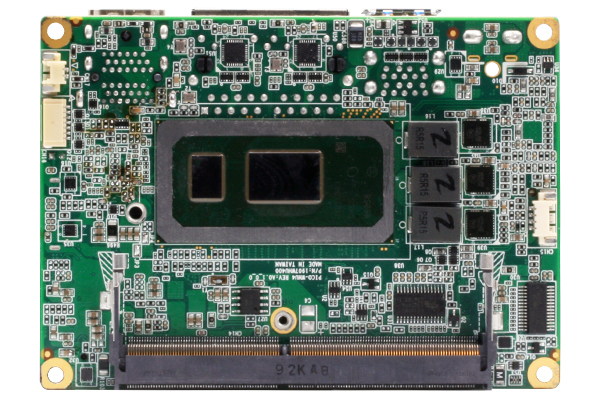

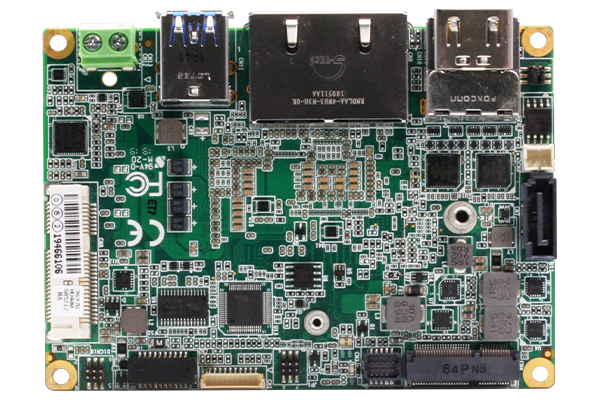

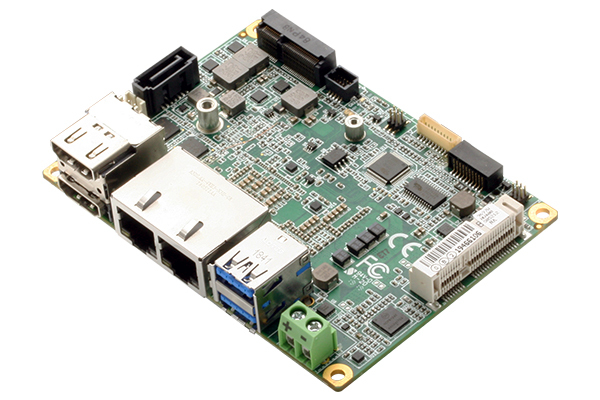

PICO-WHU4 is a compactly designed 8th Generation featuring PICO-ITX board and Intel® Core™ Processor for Edge Computing.
AAEON compact embedded (embedded) AAEON PICO-whu4 is the latest computing. With 8th Generation Intel® Core™ i3/i5/i7 and Celeron processors (formerly Whiskey Lake) and a compact PICO-ITX motherboard supporting up to 16 GB RAM,
Providing high computing performance in a compact board, PICO-WHU4 is powered by 8th Generation Intel® Core™ i3/i5/i7 and Celeron processors (formerly known as Whiskey Lake).
The PICO-ITX form factor is perfect for projects that require high performance from a small card. PICO-WHU4 also offers a wide temperature range (0°C-60°C), allowing it to operate almost anywhere.
PICO-WHU4 is built to power a set of calculations, applications and leads and support framework. PICO-WHU4 also supports Intel® Movidius® Edge Myriad Core™

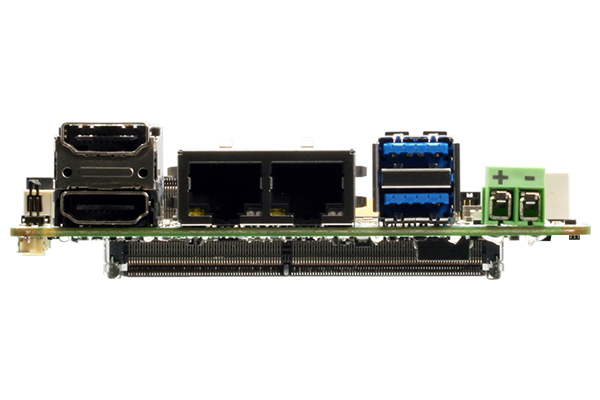

PICO-WHU4 features I/O Ports perfect for powering an integrated compute or Edge application, including 4 USB 3.2 Gen2 Ports, two Ethernet Ports and two COM headers.
AAEO offers customers a turnkey PICO-WHU4 SEMI-Embedded system with customization capabilities, including PICO-whu4, allowing you to quickly prepare your project.
Product Code | PICO-WHU4-A11-DC02 |
Form Factor | PICO-ITX |
Card Size (mm) | 100 x 72 |
Cooling | Optional: Heat Spreader |
Processor [CPU] | Intel® Core™ i5-8265U 4 Core 1.60 GHz BM : 6050 |
Processor [CPU] Family | Intel® Core™ i5 8. Gen |
RAM [System Memory] | [Max 16 GB] |
SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA3 x 1 |
LAN/Ethernet | GbE x 2 |
USB 3.0 | x 2 |
USB 2.0 | x 2 |
RS 232 Serial Port | x 1 |
RS 232/422/485 Serial Port | x 1 |
Digital I/O | DIO x 4 |
Video Output | HDMI x 1 |
Expansion Slot | M.2 E Key x 1 |
Supply voltage | DC 12V |
Operating temperature | 0°C / 60°C |
Certificates | CE |
