PICO-V2K4-A10-0003
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX
Overview

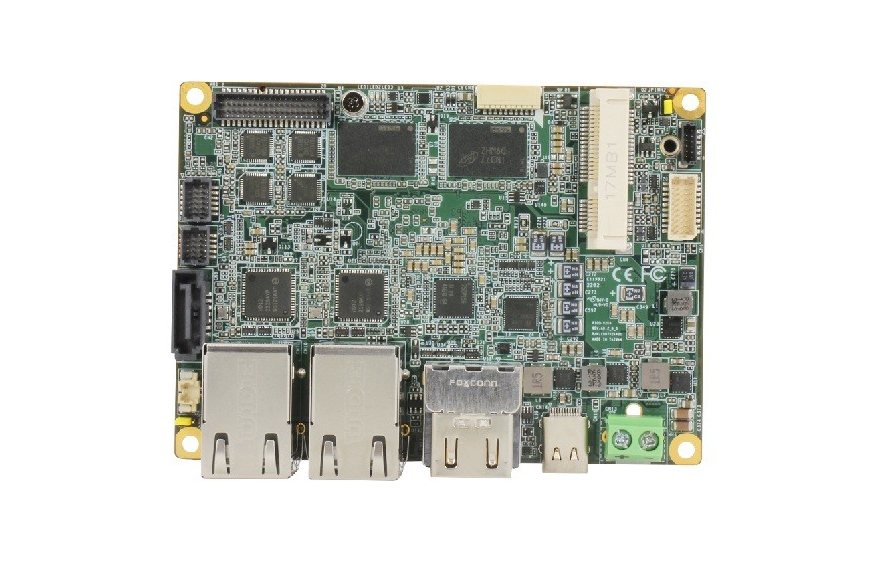

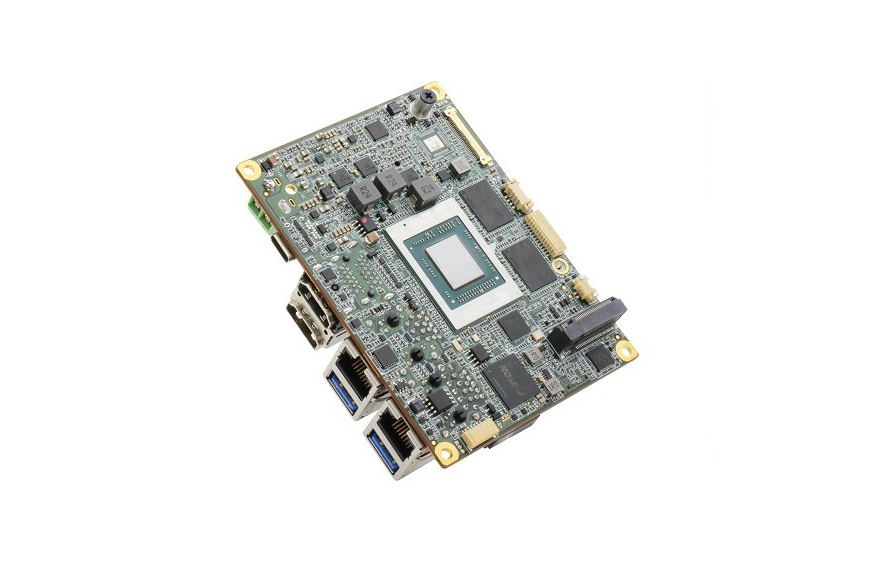

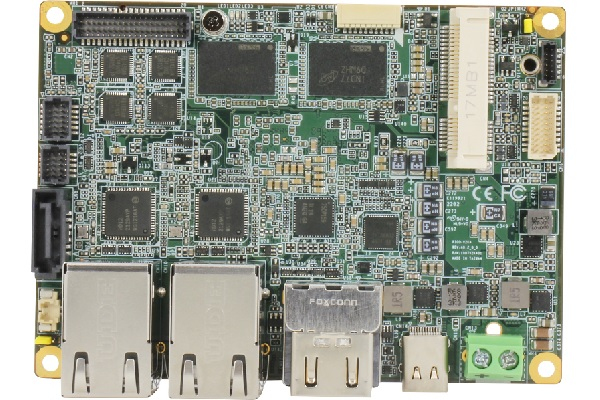

PICO-ITX Motherboard with AMD® RYZEN™ V2000 onboard Processor Family
Features
AMD® RYZEN™ V2000 onboard Processor Family (V2718/V2516)
LPDDR4x onboard memory, up to 32 GB
Intel® i210, 10/100/1000Base x 2
HDMI x 2 (4Kx2K, 2.0b x 1, 1.4 x 1)
Type C - DP x 1, LVDS/eDP x 1
M.2 2280M Key (PCIe x4 GEN3/SATA) x 1
Full Size mPCIe /mSATA x 1
USB 3.2 Gen2 x 2, USB 3.2 Gen2 Type C x 1, USB 2.0 x 4
RS-232/422/485x4
Features
| Product Code | PICO-V2K4-A10-0003 |
| Form Factor | PICO-ITX |
| Card size (mm) | 100 x 72 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | AMD® RYZEN™ V2516 2.10 GHz 6 Core | BM : 13016 |
| Processor [CPU] family | AMD® RYZEN™ |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | Onboard NVME SSD 64 GB x 1 | SATA3 x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | 2 x USB 3.2 Gen2 + 4 x USB 2.0 + 2 x USB 3.2 Gen2 + 1 x USB 3.2 Gen2 Type C |
| USB 2.0 | x 4 |
| RS 232/422/485 Serial Port | x 4 |
| Video Output | HDMI x 2DP x 1 + Type-CLVDS x 2 |
| Expansion Slot | M.2 M Key | PCIe Gen3 [x4]] x 1 | Full Size Mini-PCIe x 1 | PCIe [x1] x 1 | USB 2.0 |SMBUS | I2C x 1 |
| TPM | TPM 2.0 |
| Supply Voltage | DC 12 V AT/ATX |
| Operating temperature | 0°C ~ 60°C |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Linux | Licence Price is excluded. |
