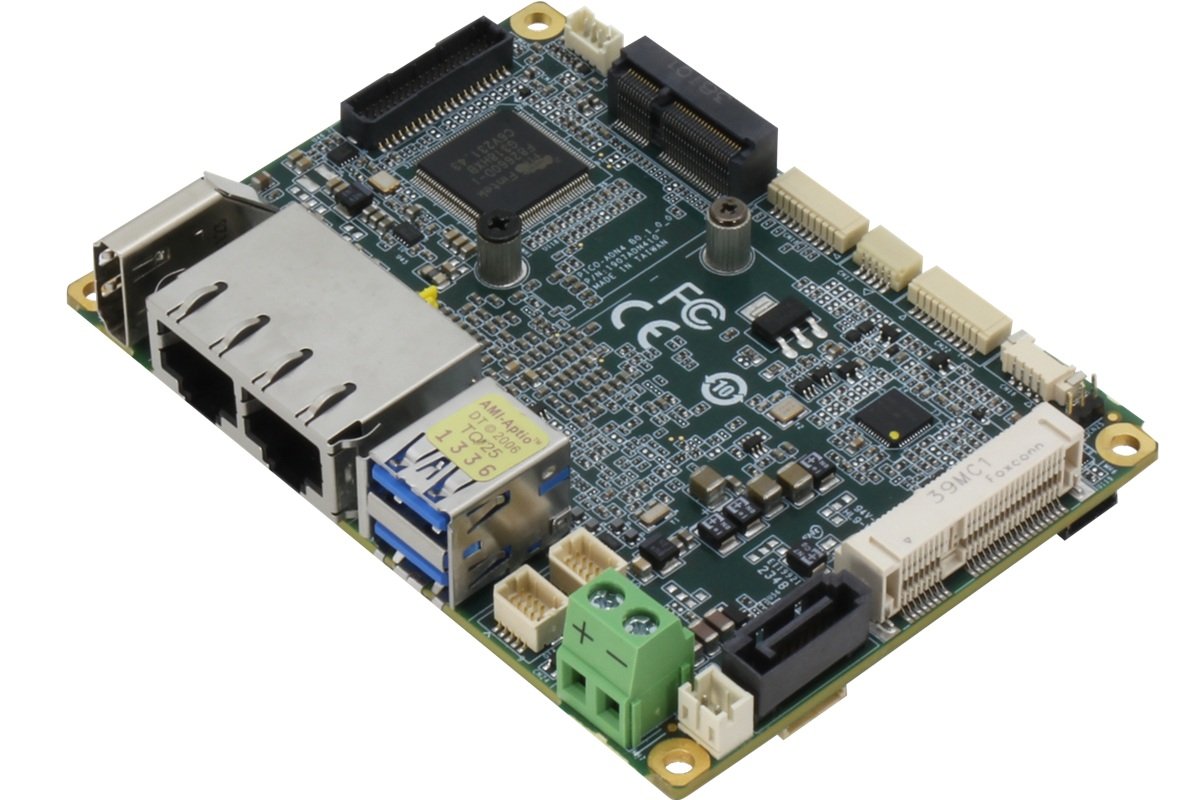

PICO-TWL4-B10-0001
Brand: AAEON [An ASUS Co.]
Categories:
It adapts to different performance and power consumption needs with the Intel® Processor N150 and the more powerful Intel® Core™ 3 Processor N355 options.
It offers up to 16GB of DDR5 4800MHz RAM support and supports dual display output via HDMI 1.4 and LVDS/eDP.
It provides comprehensive expansion capabilities with dual high-speed Ethernet connectivity (one 2.5GbE and one 1GbE); mSATA/mPCIe and M.2 2230 E-Key slots.
It includes a total of 6 USB ports (including 2 USB 3.2 Gen2) and 4 multi-mode serial ports, including RS-232/422/485.
It integrates a TPM 2.0 security module, SATA 6Gb/s storage, and industrial control interfaces like GPIO and SMBus/I2C.
Features
| Product Code | PICO-TWL4-B10-0001 |
| Form Factor | PICO-ITX |
| Cooling | Fan |
| Processor [CPU] | Intel® N150 0.80 GHz | BM : 5.446 |
| Processor [CPU] Family | Intel® Processor N |
| RAM [System Memory] | SODIMM (Maks. 16GB, DDR5 4800) |
| SSD/HDD/mSATA/M.2 | SATA 6Gb/s x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI 1.4 x 1 |
| Digital I/O | 4-bit |
| LVDS | LVDS x 1 eDP 1.4 x 1 |
| Expansion Slot | mSATA/mPCIe x 1 M.2 2230 E-Key x 1 |
| Power Consumption | Tipik: 3.53A +12V, Maksimum: 5.25A +12V |
| Supply Voltage | DC 12V |
| Working temperature | -40°C ~ 85°C |
| External Dimensions (mm) | 3.94 x 2.84 |
| Weight (kg) | 0,08 |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows® 10 | Windows® 11 | Linux Ubuntu 22.04 | Operating system license is sold separately. |
