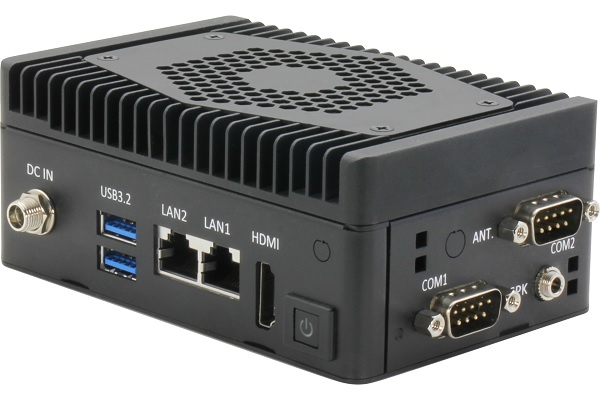

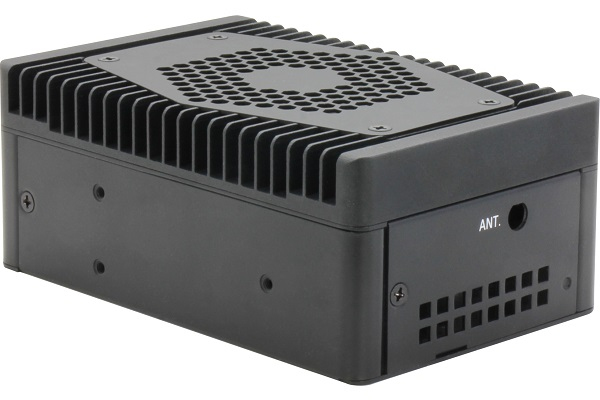

PICO-TGU4-SEMI-A10-0004
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX
PICO-TGU4-SEMI-A10-0004, Featuring an Intel® Core™ i7 processor, the PICO-TGU4-SEMI is designed to meet high performance requirements.
PCIe 4.0 support provides the necessary infrastructure for fast data transfer.
It provides wide screen integration with HDMI and DP ports that provide 4K video output.
It has fast data processing capacity with 32 GB LPDDR4x memory.
This system, which can operate stably between -20°C and 50°C, provides high efficiency in industrial environments.
Features
| Product Code | PICO-TGU4-SEMI-A10-0004 |
| Cooling | Heat Sink + Fan |
| Processor [CPU] | Intel® Core™ i7-1185GRE 4 Core 2.80 GHz | BM : 8170 |
| Processor [CPU] Family | Intel® Core™ i7 11. Gen |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 2 | SATA3 x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | 4x USB 2.0 / header |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI 2.0b x 1 + DP x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | M.2 M Key x 1 | SMBus x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 50°C |
| External Dimensions (mm) | 122 x 80.8 x 50.4 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
