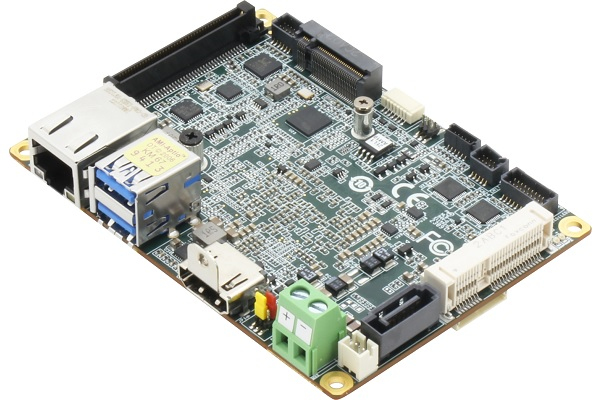

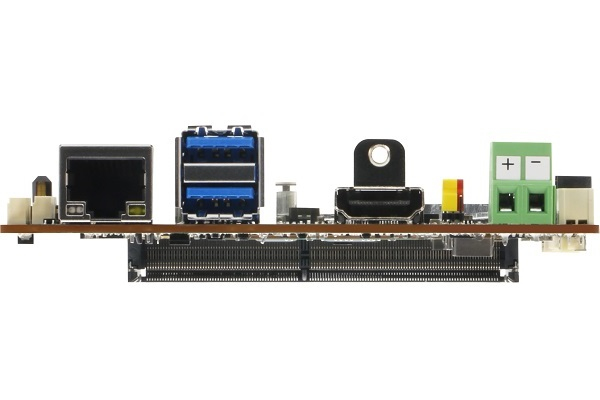

PICO-EHL1-A10-0003
Brand: AAEON [An ASUS Co.]
Categories: Pico-ITX
PICO-ITX Motherboard with Intel® Atom™ x6000E Series and Intel® Pentium® and Celeron® N and J Series Processors
Features
DDR4 3200MHz SODIMM x 1, up to 32GB
eDP 1.3/LVDS x 1 (2CH 18/24 bit)
HDMI 1.4bx1
Realtek RTL8111H-CGx1
Line-in/Line-Out/MIC (Optional)
TPM 2.00 (Optional)
Full Size mPCIe /mSATA x 1
M.2 2242 B-Key x 1
USB 3.2 Gen2 x 2, USB 2.0 x 2
RS-232/422/485x2
BIO (PCIe [x2] Line-Out, DDI, GPIO, LPC, SMBUS, USB 3.0/2.0)
Features
| Product Code | PICO-EHL1-A10-0003 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 100 x 72 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Atom™ x6425E 4 Core 2.00 GHz BM : 3830 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | DDR4 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 1 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | GPIO 4Bit + DIO x 16 |
| Video Output | HDMI x 1 + LVDS x 1 |
| Expansion Slot | M.2 B Key x 1 | Full Size Mini-PCIe x 1 |
| Supply Voltage | NULL |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 100 x 72 |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Linux Ubuntu 20.04 | Licence Price is excluded. |
