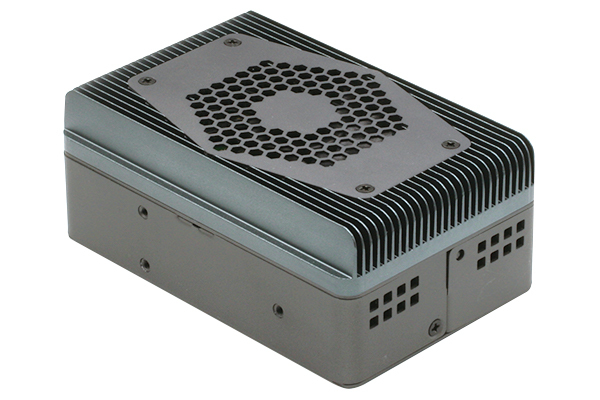

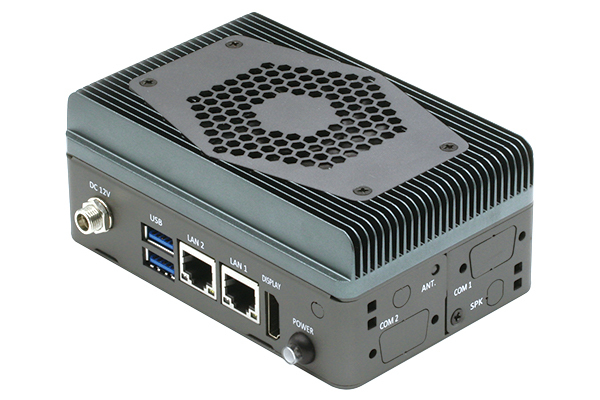

PICO-APL4-SEMI-A10-FS01

Brand: AAEON [An ASUS Co.]
Categories: Plug & Play Box PC

Intel® Atom™/Pentium® N4200/N3350 Celeron Processor SoC featuring PICO-ITX turnkit

• 180 gram cases compatible with every application

• Gigabit Ethernet Network Connections

• USB 3.2 Gen1 Connection

• HDMI

• WiFi / 3G / 4G Bluetooth Module M.2 2280 (B) 2230 M.2 (E) Slot

• DIN Rail Kit for Antenna, Wall mount, Hard Holes

• Lockable 12V DC Input


Features


Product Code PICO-APL4-SEMI-A10-FS01
Form Factor PICO-ITX
Card Size (mm) 122 x 72 x 50
Cooling Optional: Heat Spreader
Processor [CPU] Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107
Processor [CPU] Family Intel® Celeron®
RAM [System Memory] 2 GB Onboard
SSD/HDD/mSATA/M.2 SATA3 x 1 | M.2 M Key x 1 | 32 GB eMMC
LAN/Ethernet GbE x 2
USB 3.0 x 2
USB 2.0 x 2
Video Output HDMI x 1
Expansion Slot M.2 E Key x 1
Supply Voltage DC 12 V AT/ATX
Operating temperature 0°C ~ 50°C
Chassie Material Aluminum
Certificates CE
Supported Operating Systems Windows 10 | Linux | Licence Price is excluded.
