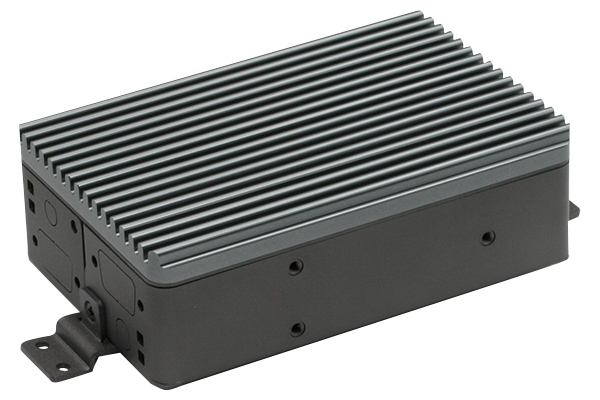

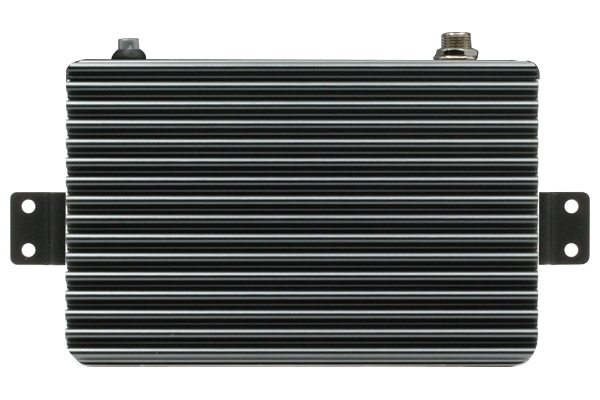

PICO-APL1-SEMI-A11-FB02
Brand: AAEON [An ASUS Co.]
Categories: Plug & Play Box PC
PICO-ITX Embedded Intel® Atom™ Processor (Embedded) Barebone Kit
• 180 gram cases compatible with every application
• Gigabit Ethernet Network Connections
• USB 3.2 Gen1 Connection
• HDMI
• WiFi / 3G / 4G Bluetooth Module M.2 2280 (B) 2230 M.2 (E) Slot
• DIN Rail Kit for Antenna, Wall mount, Hard Holes
• Lockable 12V DC Input
Features
| Product Code | PICO-APL1-SEMI-A11-FB02 |
| Form Factor | PICO-ITX |
| Card Size (mm) | 122 x 80 x 44 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x 2 |
| USB 2.0 | x 1 |
| Video Output | HDMI x 1 |
| Expansion Slot | Half Size Mini-PCIe x 6 |
| Supply Voltage | DC 12 V |
| Operating temperature | 0°C ~ 50°C |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Linux | Licence Price is excluded. |
