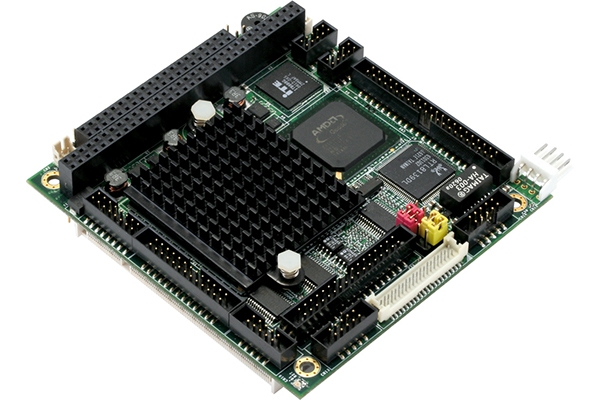

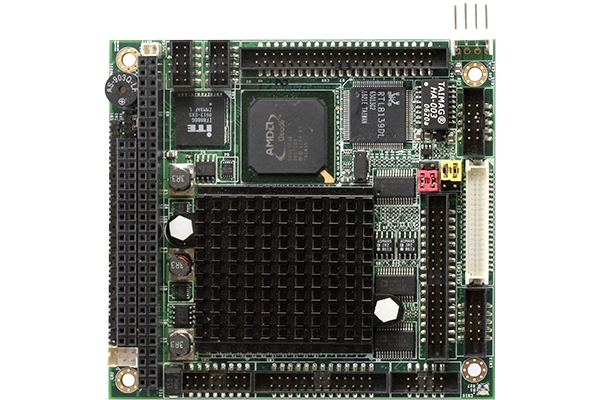

PFM-540I-A11
Brand: AAEON [An ASUS Co.]
Categories: PC/104
PFM-540I Rev.A adopts a more cost-effective AMD® Geode™ LX800 processor compared to other PC/104 CPU modules on the market.
This model supports up to 1GB DDR333 SODIMM Memory or up to 512MB DDR400. Despite its compact size, the PFM-540I Rev.A board provides all the features customers need.
The chipset of PFM-540I Rev.A deploys AMD® LX800 and CS5536, which enables this motherboard to achieve high performance.
It includes one 10/100Base-TX Ethernet Port, four USB 2.0 Ports, two Serial Ports, one parallel Port, IR interface, observer timer, and includes PC/104 Expansion.
Card Size (mm)
Features
| Product Code | PFM-540I-A11 |
| Form Factor | PC/104 |
| Card Size (mm) | 90 x 96 |
| Cooling | Fanless |
| Processor [CPU] | AMD® GEODE™ LX800 2 Core 0.50 GHz | BM : 252 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | DDR4 |
| SSD/HDD/mSATA/M.2 | EIDE x 1 | CFast x 1 |
| LAN/Ethernet | FE x 1 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 + LVDS x 1 |
| Expansion Slot | PC/104 x 1 |
| Supply Voltage | NULL |
| Operating temperature | 0°C ~ 60°C |
| Certificates | CE | FCC |
