PER-T481-A30-00
Brand: AAEON [An ASUS Co.]
Categories: Machine Vision Box PC
Overview

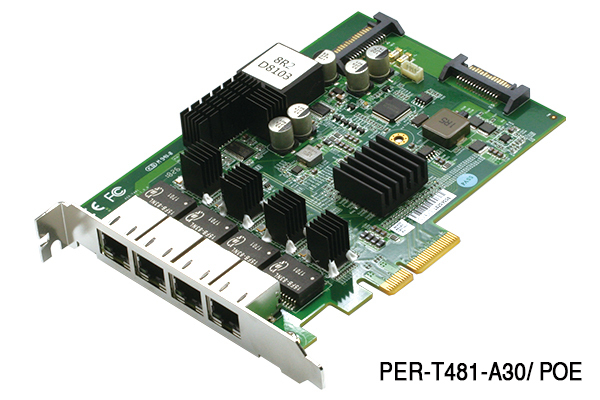

4-Port PoE PCIe [x4] Frame Grabber Card
Features
PCIe xpress® [x4] Compatible 2nd Generation
Gigabit Ethernet Controller, Intel i211at
Bandwidth 1 Gb/s Support for Each Port
Link Aggregation / Jumbo Frame Support (9 kbytes)
Smart PoE support (not supported on Linux)
Features
| Product Code | PER-T481-A30-00 |
| USB 3.2 | x 1 |
| LVDS | 18/24 bit 1CH x 1 |
| Supply Voltage | DC 12-24 V |
| Operating temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 112 x 150 |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Licence Price is excluded. |
