PER-T479-A11-00
Brand: AAEON [An ASUS Co.]
Categories: Machine Vision - Machine Vision Box PC
Overview

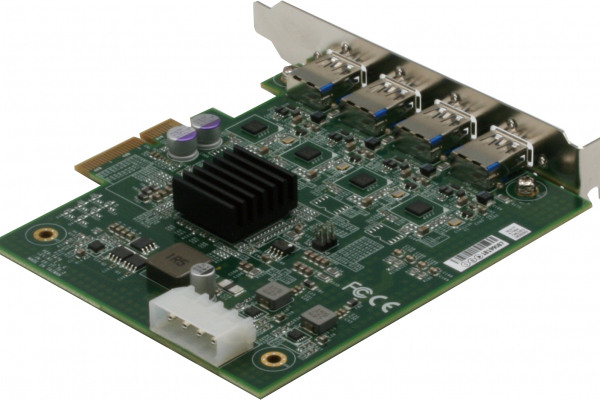

4-Port USB 3.2 PCIe Gen1 [x4] Frame Grabber Card
Features
PCI Express® [x4] Gen. 2 Compatible
4 Independent Gen1 USB 3.2 Host Controllers
Supports 5 Gb/s Bandwidth per Port
Supports Lockable USB Connector
Features
| Product Code | PER-T479-A11-00 |
| RAM [System Memory] | NULL |
| USB 3.2 | x 1 |
| LVDS | 18/24 bit 1CH x 1 |
| Supply voltage | DC 12V |
| Operating temperature | -20°C / 60°C |
| External Dimensions (mm) | 120 x 107 |
| Certificates | CE |
| Supported Operating Systems | Windows® 10 IoT | Pro | Windows® 8 | License Not Included in the Price. |
