OMNI-3195HTT-ADP-A1-1010
Brand: AAEON [An ASUS Co.]
Categories:

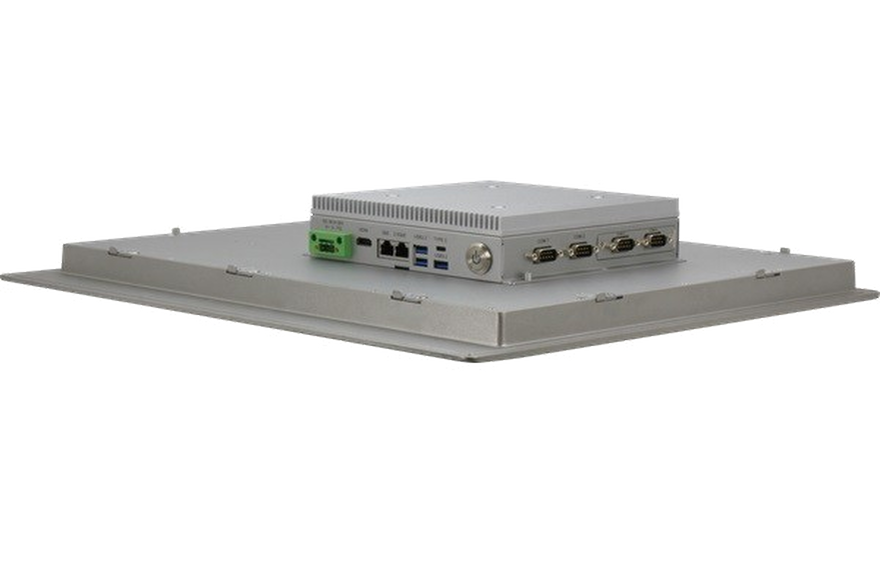

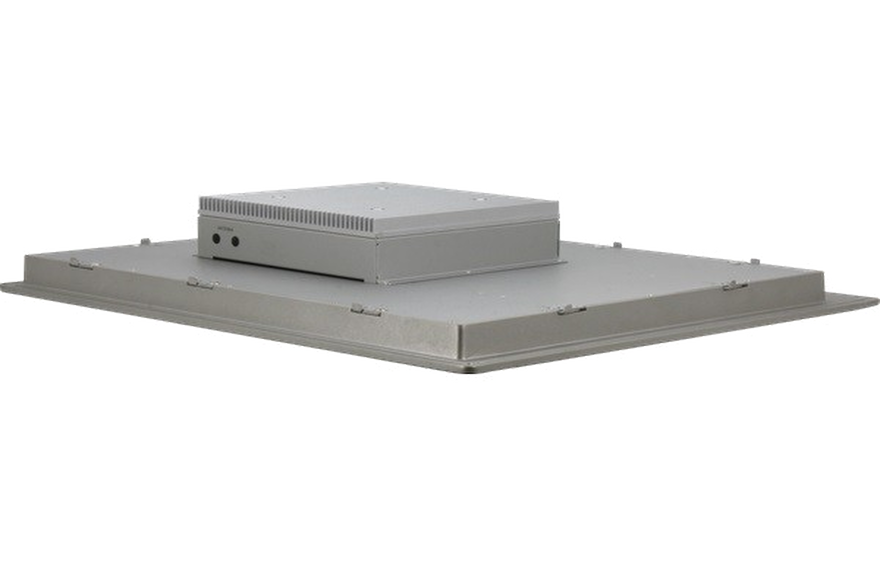

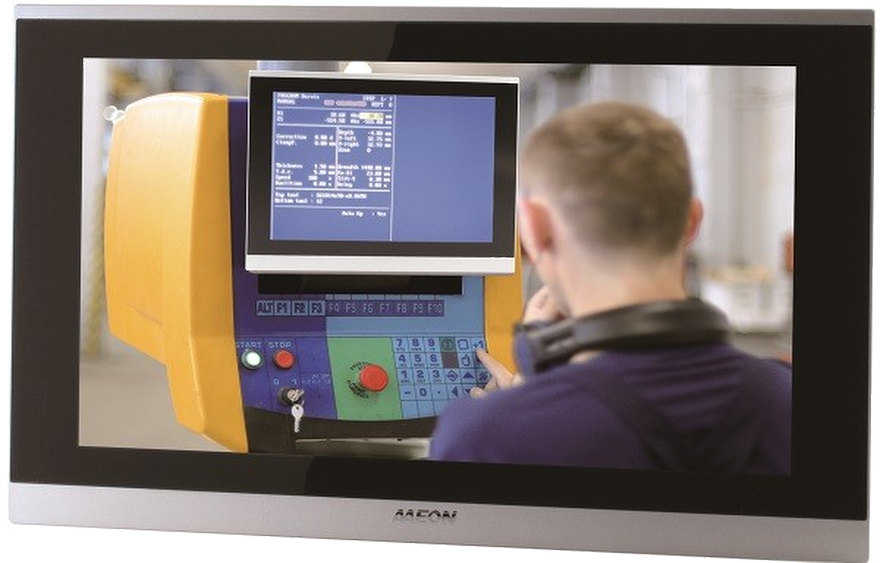

OMNI-3195HTT-ADP-A1-1010 is a 19” high-performance HMI panel computer.
Equipped with Intel® Core™ and Celeron® processors, it delivers robust, high-performance computing power.
Its durable aluminum construction is designed for harsh environments, with 1280 x 1024 resolution, P-CAP or resistive touch screen options.
VESA and panel mounting, M.2 PCIe x4 NVMe storage support provides ease of installation and data processing.
It has a DC 9-30 V input range, an operating temperature of -20°C ~ 55°C, and is compatible with Windows 10 and Linux operating systems.
Features
| Product Code | OMNI-3195HTT-ADP-A1-1010 |
| Screen size | 19" TFT LCD |
| Resolution | 1280 x 1024 |
| Screen Format | 5 | 4 |
| Brightness | 350 cd/m² |
| Viewing Angle | 170°(H) / 160°(V) |
| Touch Type | Rezistif |
| Backlight Life (Min. Hours) | 50000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® 7305E 5 Core 1.00 GHz | BM : 2665 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 64 GB |
| SSD/HDD/mSATA/M.2 | 2.5" SATA3 x1 M.2 2280 M-Key x1 (PCIe x4 for NVMe) |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 3 |
| USB 2.0 | x 1 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 3052 B-Key x 1 (BOM Optional: PCIe [x2], Standard: USB 3.2 Gen 2 + SATA) M.2 2230 E-Key x 1 (PCIe, USB 2.0) |
| Mounting Type | VESA / Panel Mount |
| Supply voltage | DC 9-30 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 18.15” x 16.14” x 2.87” (460.8 x 410 x 72.8) |
| Weight (kg) | 6 |
| Body Material | Aluminum Front Frame + Metal Chassis |
| Certificates | CE/FCC Class A Compatible |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
