OMNI-3125HTT-ADP-A2-1010
Brand: AAEON [An ASUS Co.]
Categories:

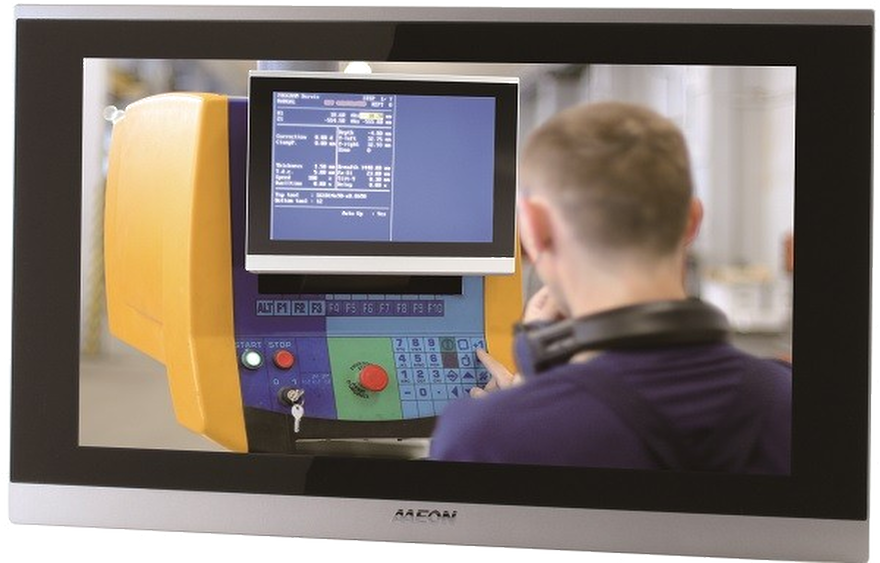

OMNI-3125HTT-ADP-A2-1010, 12.1 inch HMI panel computer, delivers powerful performance with Intel® Core™ i3-1215UE 6 Core 1.20 GHz processor.
It is suitable for industrial use with its resistive touch screen and IP65 compatible design.
Provides efficient data access with DDR5 RAM and M.2 PCIe x4 NVMe storage.
It offers wide connectivity with RS-232/422/485 x 2 ports.
It is a high-performance and durable device compatible with Windows 10 IoT Enterprise LTSC 2021.
Features
| Product Code | OMNI-3125HTT-ADP-A2-1010 |
| Screen size | 12.1" TFT LCD |
| Resolution | 1024 x 768 |
| Screen Format | 4 | 3 |
| Brightness | 500 cd/m² |
| Viewing Angle | 160°(H) / 160°(V) |
| Touch Type | Rezistif |
| Backlight Life (Min. Hours) | 50000 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-1215UE 6 Core 1.20 / 4.40 GHz | BM : 9643 |
| Processor [CPU] Family | Intel® Core™ i3 12. Gen |
| RAM [System Memory] | DDR5 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA3 x1 M.2 2280 M-Key x1 (PCIe x4 for NVMe) |

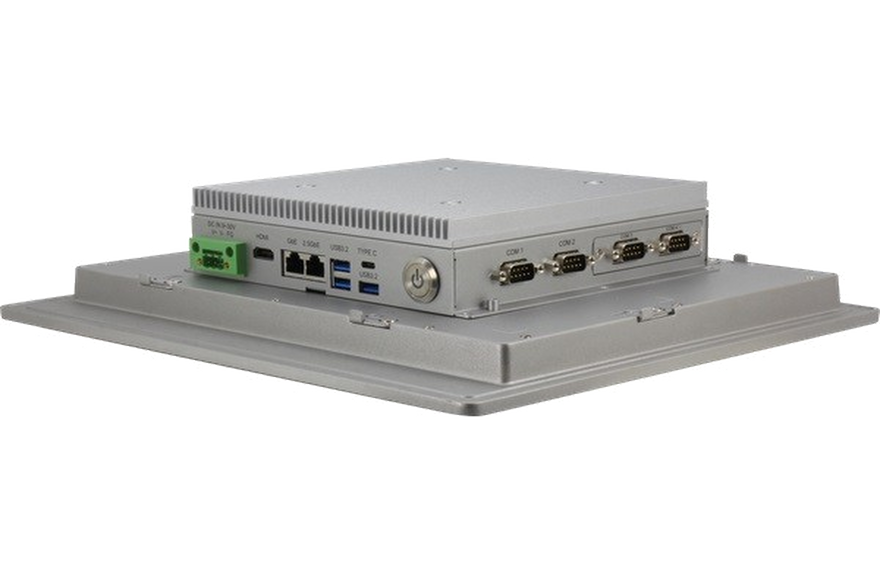

| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 3 |
| USB 2.0 | x 1 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 3052 B-Key x 1 (BOM Optional: PCIe x2, Standard: USB 3.2 Gen 2 + SATA) M.2 2230 E-Key x 1 (PCIe, USB 2.0) |
| Mounting Type | VESA / Panel Mount |
| Supply voltage | DC 9-30 V |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 12.9” x 11.3” x 2.7” (328.5 x 288 x 69.7) |
| Weight (kg) | 4 |
| Certificates | CE/FCC Class A Compatible |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
