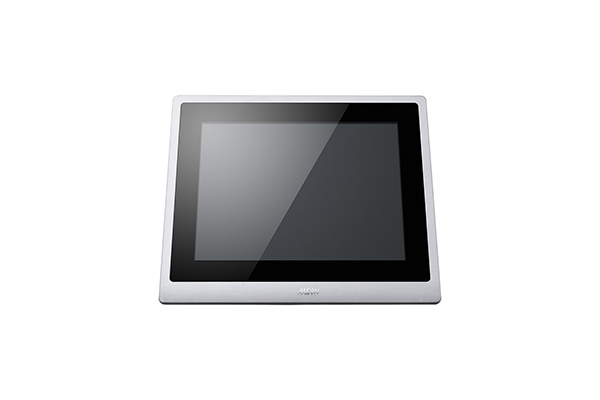

OMNI-310MHTT-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Industrial Monitor

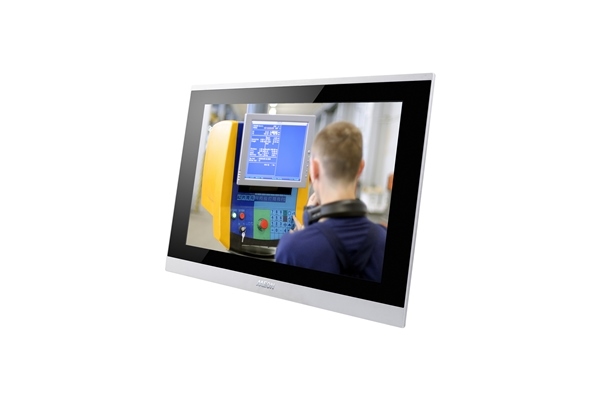

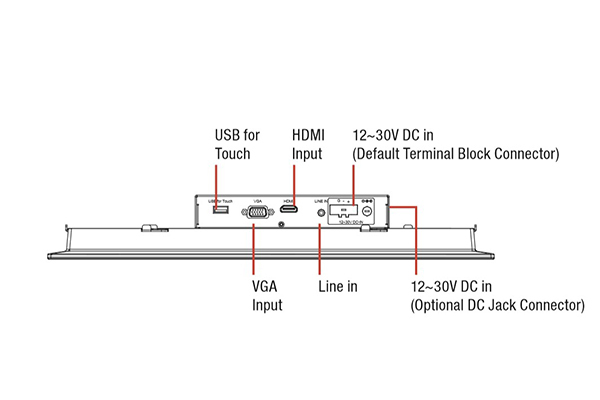

The OMNI Display Series includes panels in seven different sizes: 10.4", 12.1", 15", 17", 19", 15.6" and 21.5", and customers can choose from PCAP and resistive touch screen models The stylish and sturdy panels are covered with IP65 aluminum front frame and feature various power saving, 12V~30V DC power input range, OVP, UVP, OCP and reverse power protection, and customers can also choose between the panels' terminal block and -10° jack connection. C ~ 55°C operating temperature range.
• TFT LCD Screen
• P-CAP Capacitive [Zoom-Out] multi-touch or Resistive touch
• IP65 aluminum front frame
• DC 12 ~ 30V, Over Voltage/Current, Under Voltage Protection
• Optional Internal Speakers
Applications
• Smart Cities
• IOT
• Power Input Protection: Overvoltage Protection, Undervoltage Protection
Scope of application
• Industrial automation
• Machine Automation
• Data collecting
• Industry 4.0
• Smart Factories
• Smart Buildings
• IOT
Features
| Product Code | OMNI-310MHTT-A2-1010 |
| Screen size | 10.4" TFT LCD |
| Resolution | 800 x 600 |
| Screen Format | 4 | 3 |
| Brightness | 230 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 120°(H ) / 100°(V) |
| Touch Type | Projected Kapasitif [P-CAP] |
| video input | HDMI x 1 | VGA x 1 |
| RAM [System Memory] | NULL |
| Wireless | Wi-Fi / BT Opsiyonel |
| Mounting Type | VESA 100 | Panel Mount | Mounting Unit Not Included. |
| Supply voltage | DC 12V - 30V |
| Operating temperature | -10°C / 55°C |
| Weight (kg) | 2 |
| Body Material | Aluminum |
| IP Protection Class | IP65 Compatible Aluminum Front Frame |
| Certificates | CE | FCC |
