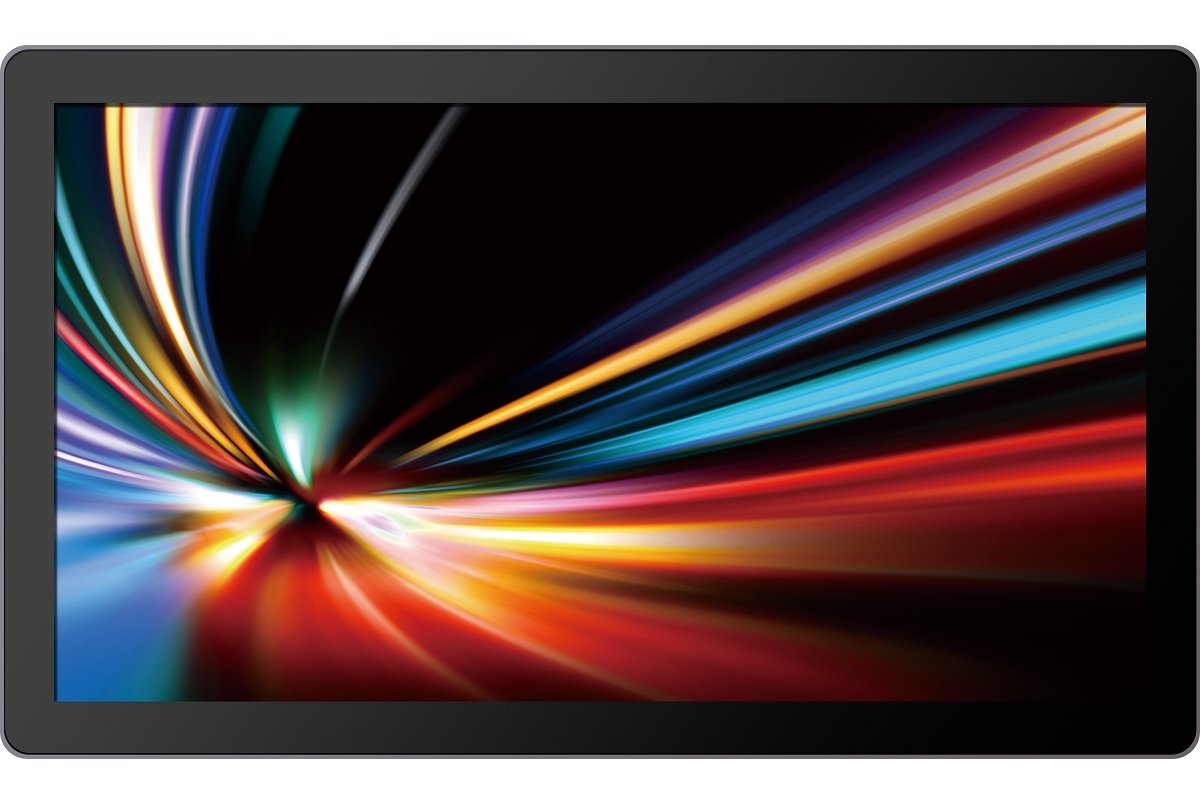

OMNI-2245HTT-ADP-A7-1010
Brand: AAEON [An ASUS Co.]
Categories:
It offers a superior visual experience with its 23.8 inch Full HD (1920 x 1080) TFT LCD screen and sensitive Capacitive Touch feature.
Powerful Processor and Storage: It provides high performance with 12th Generation Intel® Core™/Celeron® processors and offers fast storage thanks to the M.2 slot supporting NVMe (PCIe [x4]).
It is resistant to harsh environments with its aluminum body and IP65 protected front frame; it does not require maintenance with its fanless structure.
It provides ease of installation with its 9V ~ 30V DC wide voltage input range and both VESA and built-in Panel Mount options.
It is a flexible and modular Panel PC solution designed for industrial HMI (Human Machine Interface) applications.
Features
| Product Code | OMNI-2245HTT-ADP-A7-1010 |
| Screen size | 23.8" TFT LCD |
| Resolution | 1920 x 1080 |
| Screen Format | 16 | 9 |
| Brightness | 450 cd/m² |
| Viewing Angle | 178° (H) ; 178° (V) |
| Touch Type | Projective Capacitive [P-CAP] |
| Backlight Life (Min. Hours) | 50,000 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-1245UE 10 Core 4.40 GHz | BM : 9283 |
| Processor [CPU] Family | Intel® Core™ i5 12. Gen |
| RAM [System Memory] | DDR5 4800MHz x 2, Maks. 64GB |
| SSD/HDD/mSATA/M.2 | 2.5" SATA-III x 1, M.2 2280 M-Key (NVMe) x 1 |
| LAN/Ethernet | 2.5 GbE x 1 | GbE x 1 |
| USB 3.2 | x 3 |
| USB 2.0 | x 1 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x1 |
| Mounting Type | VESA 75 | Panel Mount | Stand | Mounting Unit Not Included. |
| Supply Voltage | DC 9V-30V |
| Working temperature | -20°C ~ 60°C |
| Body Material | Alüminyum Ön Çerçeve + Metal Kasa |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows® 10 | Windows® 10 IoT Enterprise | Windows® 11| İşletim sistemi lisans harici olarak satılır. |
