NANOCOM-WHU-A10-0004
Brand: AAEON [An ASUS Co.]
Categories: COM Express Mini you

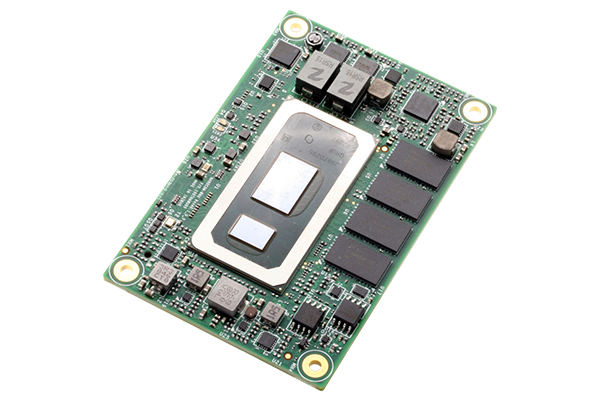

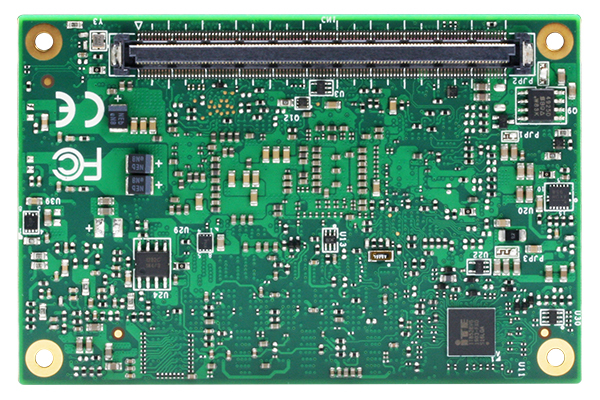

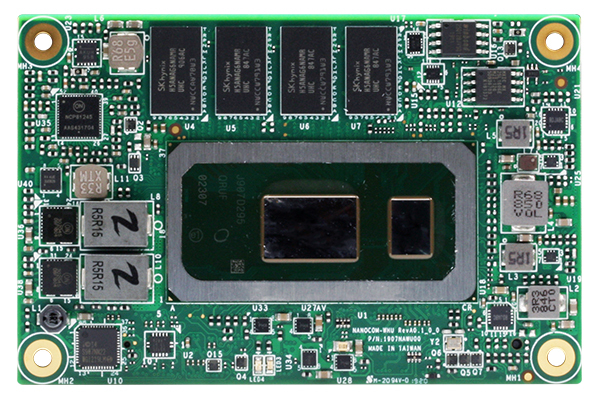

COM Express Type 10 with 8th Gen Intel® Core™ U Series Processor
Overview
NANOCOM-WHU helps unlock power and expandability for industrial embedded applications. Based on the COM Express Mini Type 10 form factor, this compact card features 8th Gen Intel® Core™ U processors (formerly Whiskey Lake) with up to 8GB of onboard DDR4 memory and 64GB eMMC storage.
The compact size allows NANOCOM-WHU to fit into almost any tight space, while the COM Express form factor allows users and developers to easily maintain and upgrade systems.
NANOCOM-WHU offers flexibility with a range of Expansion and I/O support including four PCIe [x1] slots, SATA III (6.0 Gbps) storage, USB 3.2 Gen2, 8-bit GPIO and more.
The card is also built for tough industrial work with an operating temperature range of 0° to 60°C.
Features
8th Generation Intel® Core™ /Celeron™ U Series Processor
onboard Memory DDR4 2400, up to 8 GB
Intel I219LM Gigabit Ethernet x 1
eDP x 1, DDI x 1
High Definition Audio Interface
SATA III x 2
USB 3.2 Gen2 x 2, USB 2.0 x 8
PCIe [x1] x 4
COM Express Mini Size, Type 10, COM.0 R3.0
Features
| Product Code | NANOCOM-WHU-A10-0004 |
| Form Factor | COM Express Mini-Size Type 10 |
| Card Size (mm) | 84 x 55 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i7-1185G7E 4 Core 2.80 GHz BM : 10440 |
| Processor [CPU] Family | Intel® Core™ i7 11. Gen |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | onboard PCIe NVMe 64 GB x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 8 |
| Serial Port | 2 Cable (Tx /Rx) x 2 |
| Various Ports | SMBus + UART 2 (Tx/Rx) |
| Digital I/O | GPIO 8 Bit |
| Video Output | LVDS x 1 + DDI x 1 |
| Expansion Slot | PCIe [x1] x 4 | PCIe [x1] x 4 | SMBus x 1 | LPC x 1 |
| Supply voltage | DC 12V |
| Operating temperature | 0°C / 60°C |
| External Dimensions (mm) | 84 x 55 |
| Certificates | CE |
| Supported Operating Systems | Windows® 11 IoT | Pro | Windows® 10 IoT | Pro | Linux | License Not Included in the Price. |
