MRD-028-N
Brand: IBASE
Categories: EN50155 Rail System Panel PC

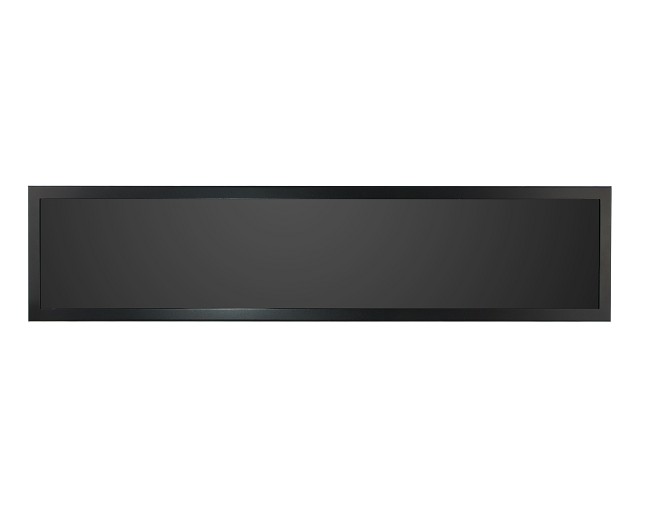

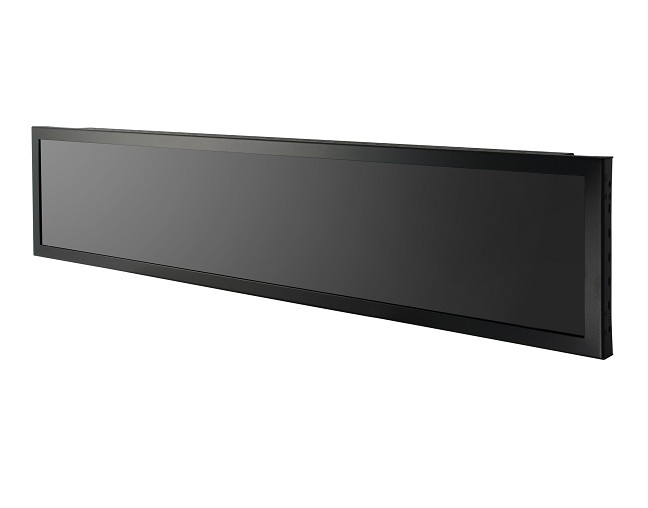

EN50155 Certified Intel® Pentium® Processor N4200 All-in-One 27.6" Bar Type Panel PC with Intel® HD Graphics (Gen9, 18 EU) ● 27.6" color TFT active matrix, large LCD with optimal resolution: 1920 x 360 and 1000 cd/m² brightness ● Intel® Pentium® N4200 1.1 ~ 1.25 GHz Processor with Intel® HD Graphics (Gen9, 18 EU) ● 2x DDR3L 1866 SO-DIMM , Dual channel, Max. 8GB ● 1x HDMI 1.4b, 1x DP 1.2 ● 2x RJ45 for Gigabit LAN ● 1x M.2 B key (3042) for storage or 4G LTE options ● Ruggedized, Fanless and compact design
Features
| Product Code | MRD-028-N |
| Screen size | 27.6" TFT LCD |
| Resolution | 1920 x 360 |
| Brightness | 1000 cd/m² |
| Viewing Angle | 178°(H ) / 178°(V) |
| Touch Type | Projected Capasitif [P-CAP] |
| Backlight Life (Min. Hours) | 50000 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Atom® E3825 2 Core 1.33 GHz | BM : 400 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 4 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 1 [M12] |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 1 |
| Expansion Slot | Full Size Mini-PCIe [x1] |
| Mounting Type | Side Mounting |
| Supply Voltage | DC 12 V |
| Operating temperature | -25°C ~ 55°C |
| External Dimensions (mm) | 729.10 x 54 x 170.80 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC | EN50155 | LVD |
