MIX-EHLD1-A10-J6412
Brand: AAEON [An ASUS Co.]
Categories: Mini-ITX

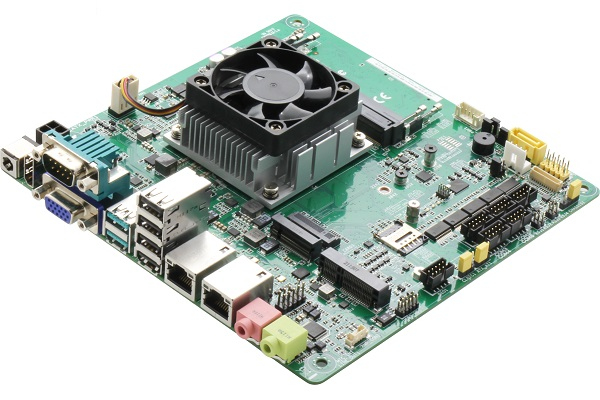

To improve edge computing and IoT performance, AAEON has expanded its mini-ITX product line with the MIX-EHLD1, a mini-ITX thin motherboard powered by the Intel® Atom® x6413E/Celeron® J6412 processor (formerly Elkhart Lake).
Designed as leading processors for IoT optimization, these processors offer nearly 2x upgrades over their predecessors in single-thread, multi-thread, and graphics performance to accelerate real-world edge computing and IoT deployments.
Additionally, these IoT-centric processors are onboard with the Intel® Programmable Service Engine (PSE), an efficient offloading engine that can reduce the workload of CPU cores and enable industrial control functions in IoT applications.
For expansion, the MIX-EHLD1 provides two M.2 slots and a mini-card slot for wireless connectivity, storage or AI optimization modules. Since today's IoT applications require intense visual presentation, MIX-EHLD1 supports 3 display outputs.
Regarding connections with multiple peripheral devices, MIX-EHLD1 comes with two USB 3.2 Gen1 Ports and four USB 2.0 Ports.
Features
| Product Code | MIX-EHLD1-A10-J6412 |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Cooling | Fan |
| Processor [CPU] | Intel® Celeron® J6412 4 Core 2.00 / 2.60 GHz | BM : 3850 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | DDR4 x 2 |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 2 |
| USB 2.0 | x 6 |
| RS 232 Serial Port | x 5 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 + VGA x 1 |
| Expansion Slot | Mini-PCIe x 1 | M.2B Key x 1 |
| Supply Voltage | ATX |
| Operating temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Linux Ubuntu 20.04 | Licence Price is excluded. |
