MI988
Brand: IBASE
Categories:

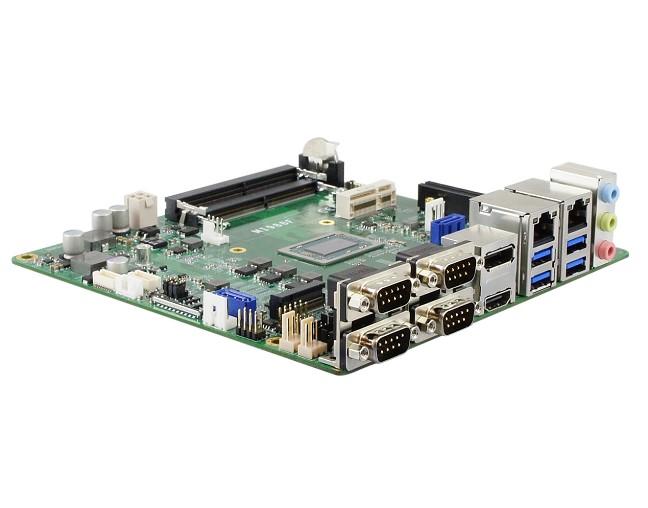

The MI988 Mini-ITX motherboard is based on the latest AMD® Ryzen™ Embedded V1000 processor family. With 14nm architecture, the AMD® Ryzen™ Embedded V1000 processor combines the processing power of the advanced AMD® “Zen” CPU and “Vega” graphics architecture in a single chip. With the high processing and graphics capabilities of AMD® Ryzen™ mobile processors, the MI988 delivers excellent graphics and stunning video performance. The MI988 provides power savings and scalability for high-performance devices used in critical markets such as machine vision, medical imaging, and gaming.
MI988 is equipped with two DDR4-2666 SO-DIMM slots supporting ECC and up to 32GB capacity. It has one M.2 SSD storage (NVMe) and two Gigabit Ethernet Ports. The provided display connectors are one HDMI (2.0a), DisplayPort (1.2) and one eDP v
Features
| Product Code | MI988 |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Processor [CPU] | AMD® Zen Core |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA3 x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.1 | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | DIx 4 / DOx 4 |
| Video Output | HDMI x 1 + DP x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | PCIe [x8] x 1 | PCIe [x8] x 1 |
| Certificates | CE |
