MI981
Brand: IBASE
Categories: Mini-ITX
MI981 Mini-ITX motherboard adopting Intel® Q87 chipset and next-generation Intel® Core™ processors. It is designed to provide high performance and flexibility for functional expansions and is ideal for applications in the industrial control, factory automation, communications and gaming industries.
By integrating 4th Generation Intel® Core™ processors built on 22nm process technology with 3-D three-gate transistors, the MI981 delivers excellent computing and graphics performance and improved performance over previous platforms built with 3rd Generation Intel® Core™ processors.

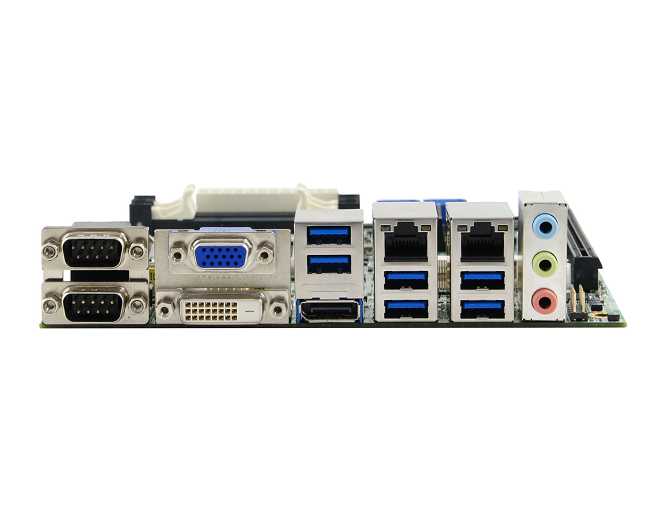

IBASE's MI981 supports two DDR3-1600 SO-DIMM RAM (memory) slots for a maximum capacity of 16 GB. Advanced and essential I/O connectivity such as six USB 3.0, six USB 2.0, six Serial Ports, four SATA III Ports and two Gigabit Ethernets
Features
| Product Code | MI981 |
| Form Factor | Mini-ITX |
| Card Size (mm) | 170 x 170 |
| Processor [CPU] | Intel® Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Intel® Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA3 x 4 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 6 |
| USB 2.0 | x 6 |
| RS 232 Serial Port | x 5 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DI x 4 / DO x 4 |
| Video Output | DVI-D x 1 + DP x 1 |
| Expansion Slot | Mini-PCIe [x1] x 2 | PCIe [x1] x 1 | PCIe [x1] x 1 |
| Supply voltage | DC 5V / DC 3.3V |
| Certificates | CE |
