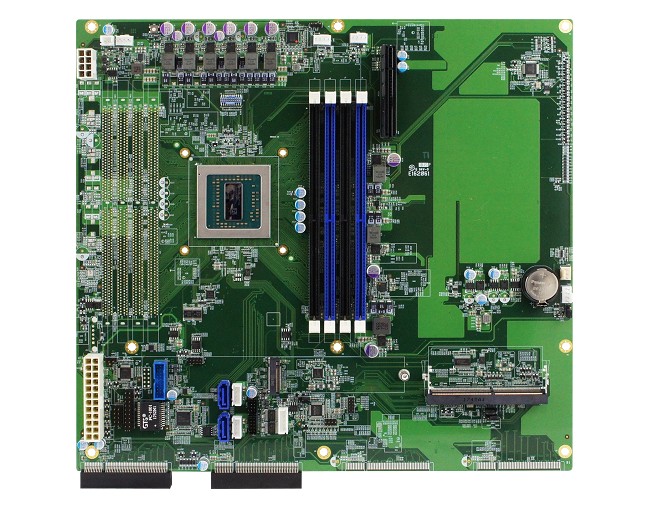

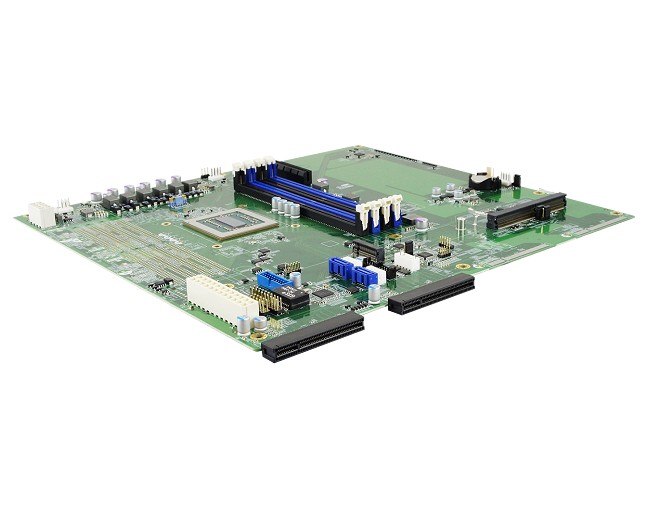

MBN806-E8
Brand: IBASE
Categories: Networking Motherboard
• AMD® EPYC™ Internal 3000 Series
• 4x DDR4 DIMM up to 2667MHz; Maximum 64 GB (UDIMM, ECC / non-ECC) or 128 GB (RDIMM)
• 2x NIC module slots
• Optional IPMI 2.0 module
• Optional rear Expansion PCIe slot
• 1x M.2 slot
Features
| Product Code | MBN806-E8 |
| Processor [CPU] | AMD® EPYCTM 3201 8C | 8T SoC |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 2 |
| LAN/Ethernet | IBN card |
| Video Output | VGA x 1 |
| Expansion Slot | PCIe [x8] x 1 | PCIe [x8] x 1 |
| Supply Voltage | ATX |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 280 x 306 |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
