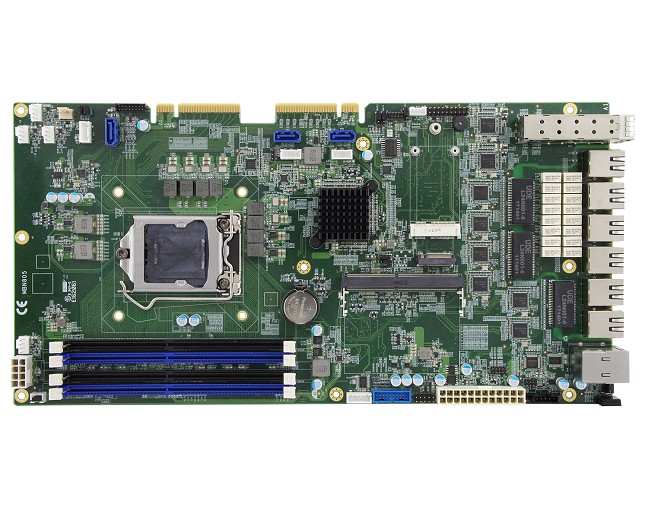

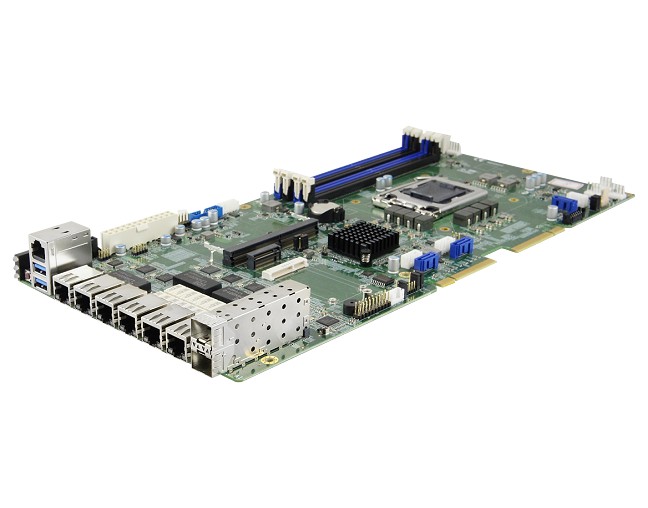

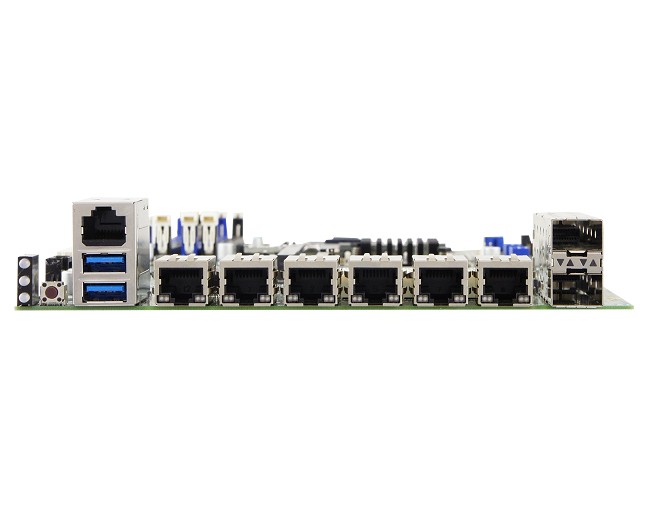

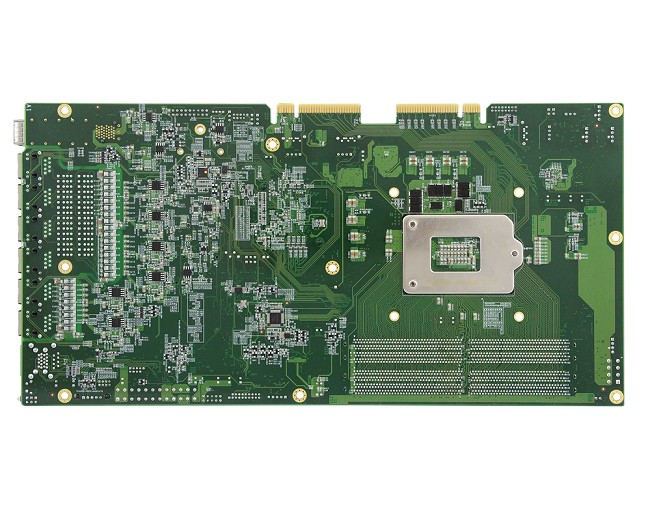

MBN805C
Brand: IBASE
Categories:
8th Generation Intel® Xeon®/Core™ i7/i5/i3 Processor Network Board with Intel C246 or H310 PCH
Features
| Product Code | MBN805C |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 3 |
| LAN/Ethernet | GbE x 8 |
| USB 3.0 | x 2 |
| Video Output | VGA x 1 |
| Expansion Slot | PCIe [x8] x 2 GF 1x M.2 Slot M Key x 1| PCIe x4 x1| PCIe [x8] x 1 GF2 | Mini-PCIe x 1 Slot |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 183 x 350 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Linux | Operating system sold separately from license. |
