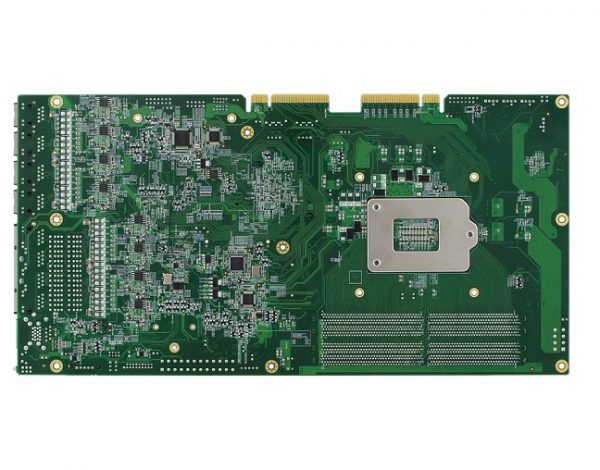

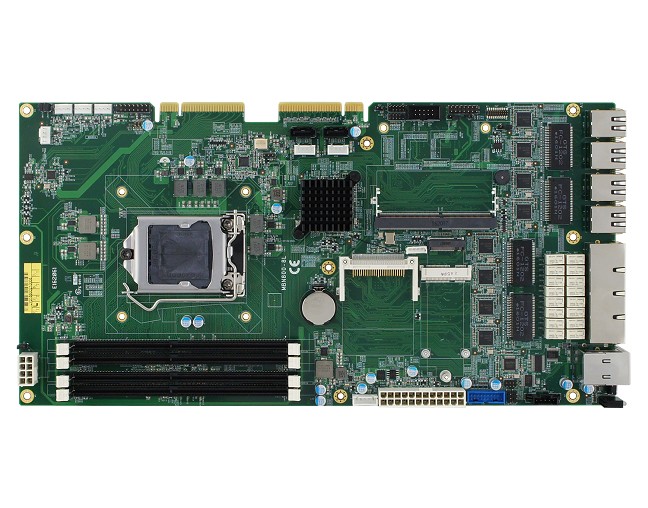

MBN800-8L
Brand: IBASE
Categories: Networking Motherboard
• 6th Generation Intel® Xeon® / Core™ i7/i5/i3 processors
• 4x DDR4 DIMMs; Max. 64GB (ECC/non-ECC)
• 8x or 6x PCIe GbE ports; 2 Advanced LAN Bypass pairs
• Optional IPMI 2.0 module
• 1x CF slot, 1x Mini-PCIe slot
Features
| Product Code | MBN800-8L |
| Processor [CPU] | Intel® Xeon® | Core™ i7 | i5 | i3 |
| Processor [CPU] Family | Intel® Xeon® | Core™ i7 | i5 | i3 |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | CFast x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 8 |
| USB 3.0 | x 2 |
| Video Output | VGA x 1 |
| Expansion Slot | PCIe [x8] x 2 | M.2 M Key x 1 | PCIe [x8] x 1 |
| Supply Voltage | ATX |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 183 x 350 |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
