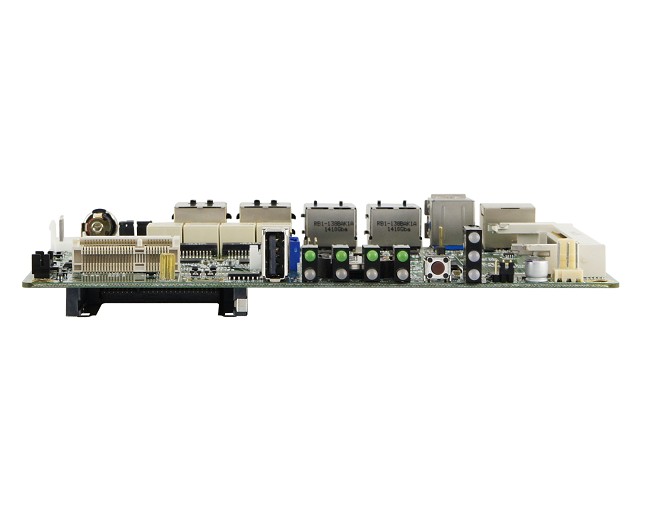

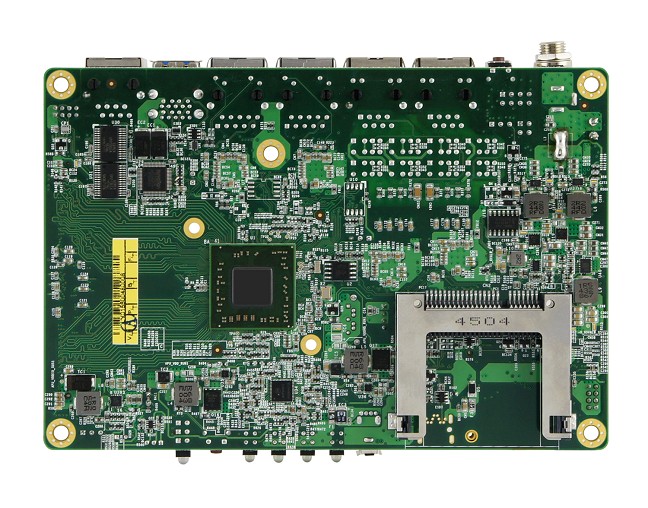

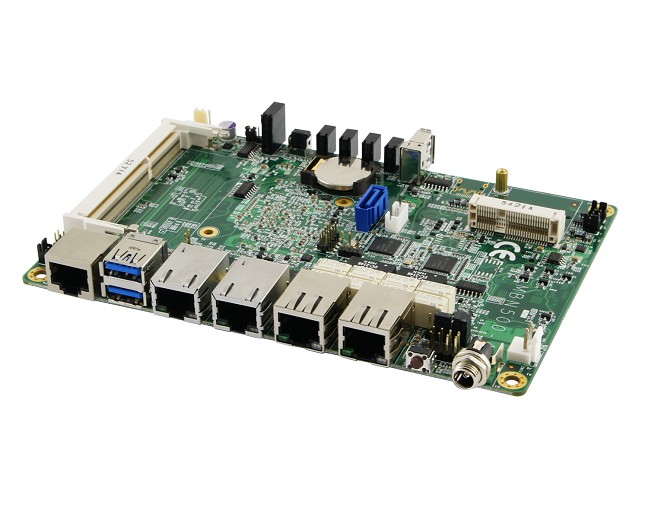

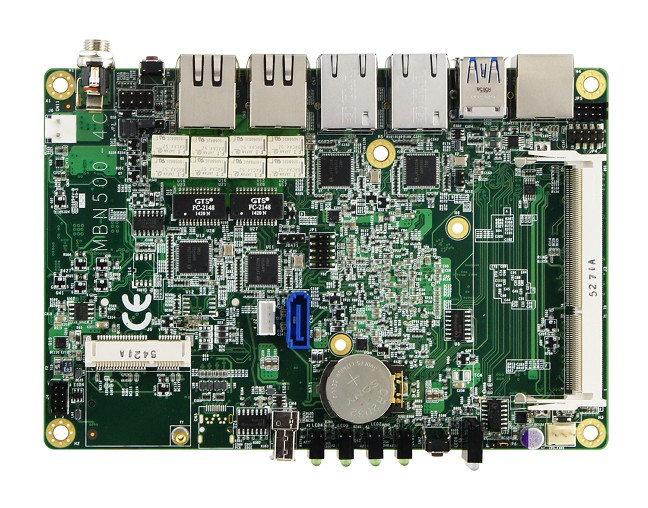

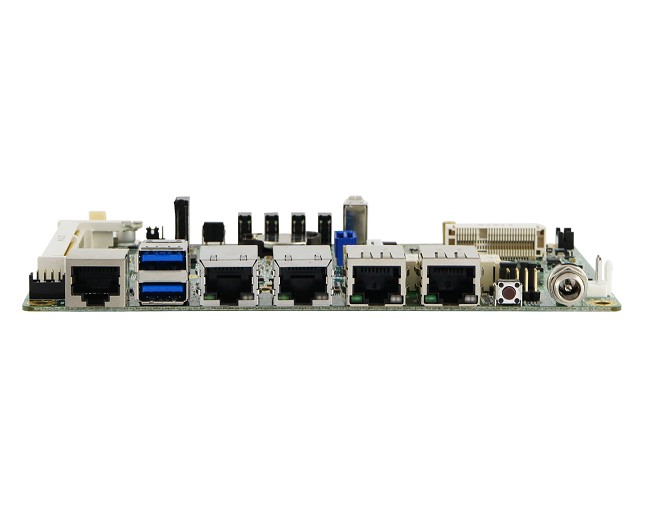

MBN500-4CG
Brand: IBASE
Categories: Networking Motherboard
• AMD® Embedded G Series SoC, up to 1.8GHz
• New Crypto processor
• 4x PCIe GbE ports with status LED indicator
• 1x DDR3L-1600 SO-DIMM; Max. 8GB
• 1x CFast socket (SATA 3.0), 1x Mini-PCIe socket
• Future support for DPDK
Features
| Product Code | MBN500-4CG |
| Processor [CPU] | AMD® GX-412HC 4 Core 1.20 GHz | BM : 1095 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | CFast x 1 | SATA3 x 1 |
| LAN/Ethernet | GbE x 4 |
| Video Output | Mini-DP x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | PCIe [x1] x 1 | PCIe [x1] x 1 |
| Supply Voltage | DC 12 V |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 162 x 110 |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
