MB995VF-C246
Brand: IBASE
Categories: ATX

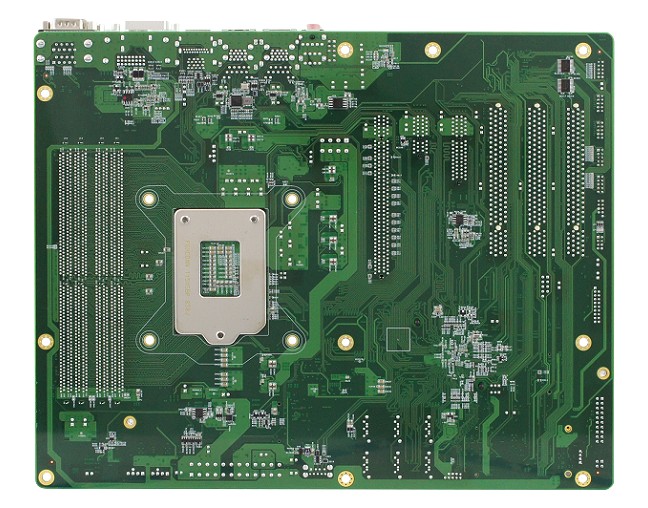

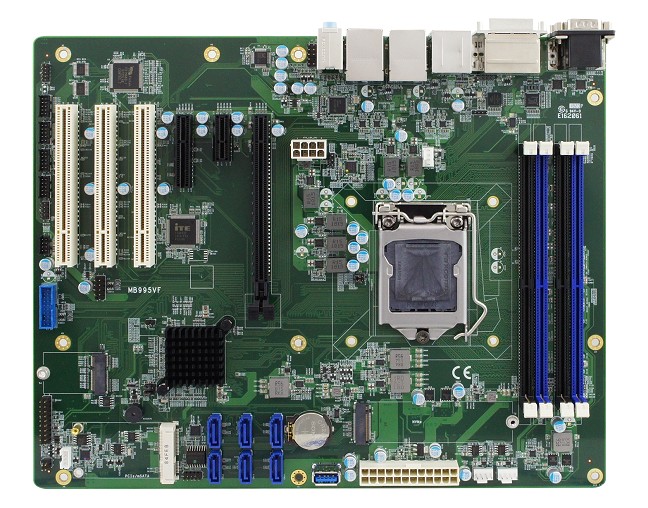

MB995 is an ATX motherboard based on the latest 8th Generation Intel® Core™ processor family. With optimized processor and graphics performance, the motherboard supports C246 (MB995VF-C246) and Q370 (MB995VF) chipsets.

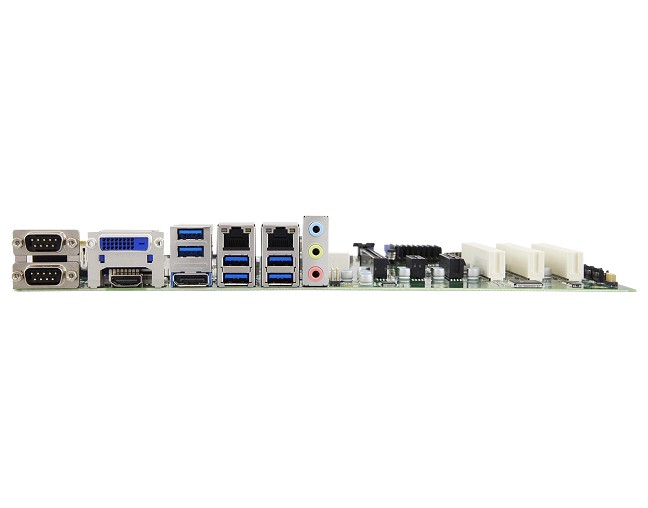

The motherboard features improved I/O and various Expansion slots. 1x PCIe [x16] 1x PCIe [x4] 1x PCIe [x1] and 3x PCI slots, along with M.2 (2280) to support NVMe drives at write speeds up to 3500 MB/s
The MB995 is designed for high-end applications in the industrial automation, kiosk, digital signage, medical imaging and gaming markets. Advanced features available include iAMT (11.6) for remote management and repair of systems, T for improved system integrity
Features
| Product Code | MB995VF-C246 |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Processor [CPU] | Intel® Xeon® | Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Intel® Xeon® | Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 6 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| USB 3.1 | x 4 |
| RS 232/422/485 Serial Port | x 2 |
| Digital I/O | DI x 4 / DO x 4 |
| Video Output | HDMI x 1 + DVI-D x 1 + DP x 1 |
| Expansion Slot | PCIe [x1] x 1 | PCI x 3 Mini-PCIe [x2] x1 | M.2 E-M Key x 1 | PCIe [x1] x 1 |
| Supply voltage | DC 3.3V |
| Certificates | CE |
