MB990VF
Brand: IBASE
Categories: ATX

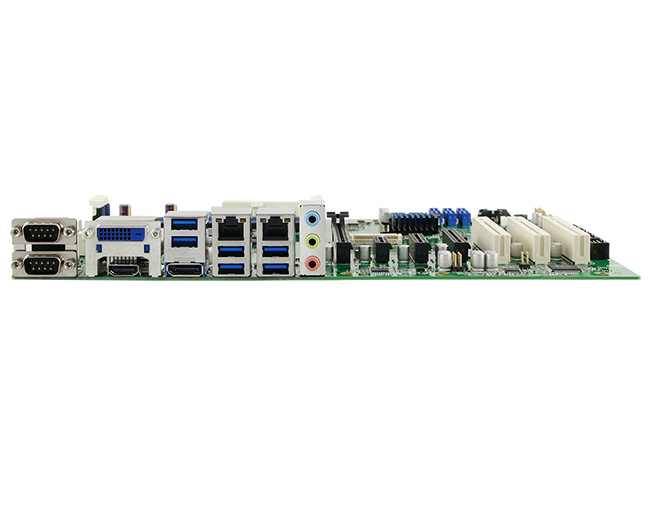

The MB990 ATX motherboard is Intel's latest 7th/6th generation motherboard. Supports 2nd Generation Intel® Core™ processors. It features the LGA1151 socket based on the “Skylake-S" Micro architecture for 6th and 7th Generation Intel® Core™, Pentium or Celeron processors. The motherboard supports four DDR4 DIMM slots for up to 64 GB of RAM (memory), four USB 2.0, ten Supports USB 3.0, six COM and six SATA III Ports, as well as graphics interface for DVI-D, HDMI and DisplayPort displays.
Equipped with a wide range of Expansion options including PCIe (x16) PCIe (x8) PCIe (x4) PCIe (x1), Mini-PCIe and three PCI slots, MB990 is best suited for IoT, industrial, digital signage, medical, retail and factory automation applications.
Features
| Product Code | MB990VF |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Processor [CPU] | Intel® Xeon® | Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Intel® Xeon® | Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 6 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 6 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DI x 4 / DO x 4 |
| Video Output | HDMI x 1 + DVI-D x 1 + DP x 1 |
| Expansion Slot | PCIe [x16] x 1 | PCIe [x8] x 1 | PCIe [x4] x 1 | PCIe [x1] x 1 | PCIe [x16] x |
| Supply voltage | ATX |
| Certificates | CE |
