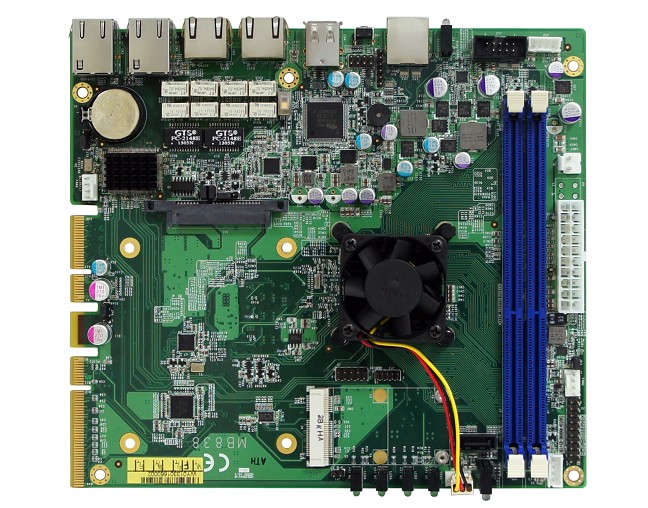

MB838-8C
Brand: IBASE
Categories: Networking Motherboard
• Intel® Atom™ Processor C2000 series
• Supports Intel's latest QuickAssist acceleration technology
• Advanced LAN Bypass
• 4x PCIe GbE ports with status LED indicator
• 2x DDR3-1600 DIMMs; Max. 32GB
• 1x Mini-PCIe socket, 1x PCIe x4 Expansion gold finger
• 1x PCIe x8 Expansion gold finger
• Supports DPDK
Features
| Product Code | MB838-8C |
| Processor [CPU] | Intel® Atom® C2758 8 Core 2.40 GHz | BM : 2400 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA2 x 1 | SATA3 x 1 |
| LAN/Ethernet | GbE x 4 |
| USB 3.0 | x 2 |
| Expansion Slot | Full Size Mini-PCIe x 1 | PCIe [x8] x 1 | PCIe [x8] x 1 | IP332 |
| Supply Voltage | DC 12 V AT/ATX |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 203 x 108 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
