MAX-Q470A-A11-210
Brand: AAEON [An ASUS Co.]
Categories:
Micro-ATX Industrial Motherboard with 10th Gen Intel® Core™ Processor, DDR4 DRAM, Multi-Display Ports, Supporting iAMT 12.0
Overview
The MAX-Q470A industrial microATX motherboard brings the performance of 10th Gen Intel® Core™ processors (formerly Comet Lake) to onboard computing platforms.
With up to 128GB RAM (4 x 32GB DDR4), the MAX-Q470 provides the power and speed needed to run even the most intensive applications, from workstations to edge AI systems and even cryptocurrency mining.
The motherboard also offers two PCIe 3.0 [x16] slots and two PCIe 3.0 [4x] slots for easily adding GPUs, AI accelerators, frame grabbers and more. Other Expansion options include M.2 2280 PCIe [x4] with NVMe support and M.2 2252 for 5G deployment and SIM card slot.

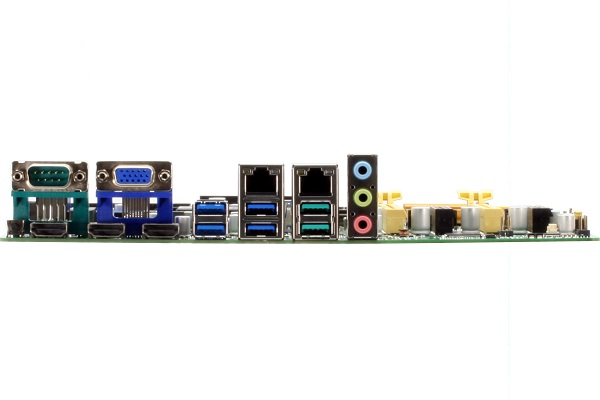

The MAX-Q470A also offers easy-maintenance features such as a BIOS recovery button on the rear I/O panel and a vertical USB 3.2 Gen1 Type-A Port on the board for increased data security.
Features
10th Generation Intel® Core™ LGA1200 Processor
Supports Max Power 10 Cores 80W.
DDR4 2933/2666/2400 MHz, max. 128GB
Three Independent Displays: HDMI x 3 (2.00 x 1, 1.4 x 2), VGA x 1, LVDS x 1
Dual Intel® Gigabit Ethernet supports LAN1 iAMT 12.0
USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 7, USB 2.0 x 2
BIOS recovery function, easy way to flash BIOS when needed
TPM onboard
Features
| Product Code | MAX-Q470A-A11-210 |
| Form Factor | Micro-ATX |
| Card Size (mm) | 244 x 244 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Core™ 10. Gen i9 | i7 | i5 | i3 |
| Processor [CPU] Family | Intel® Core™ 10. Gen i9 | i7 | i5 | i3 |
| RAM [System Memory] | [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 4 | M.2 M Key x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 10 |
| USB 2.0 | x 3 |
| RS 232 Serial Port | x 3 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 3 + VGA x 1 + LVDS x 1 |
| LVDS | POGO 12 Pin x 1 |
| Expansion Slot | PCIe [x16] x 1 | PCIe [x16] x1 | PCIe [x4] x 1 | PCIe [x4] x 1 | M.2 E Key | PCIe | CNVI) x 1 | M.2 2 | 2242 M Key | PCIe [x4] x 1) x 1 | M.2 | 2242 B Key | PCIe | USB | SATA) x 1 | Micro SIM x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Optional) |
| Supply Voltage | ATX |
| Operating temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 244 x 244 |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Linux Ubuntu 18.04 | Licence Price is excluded. |
