IPC4-RT-I88N-N10-100-8128-HB
Brand: IPC4 by ICC
Categories:

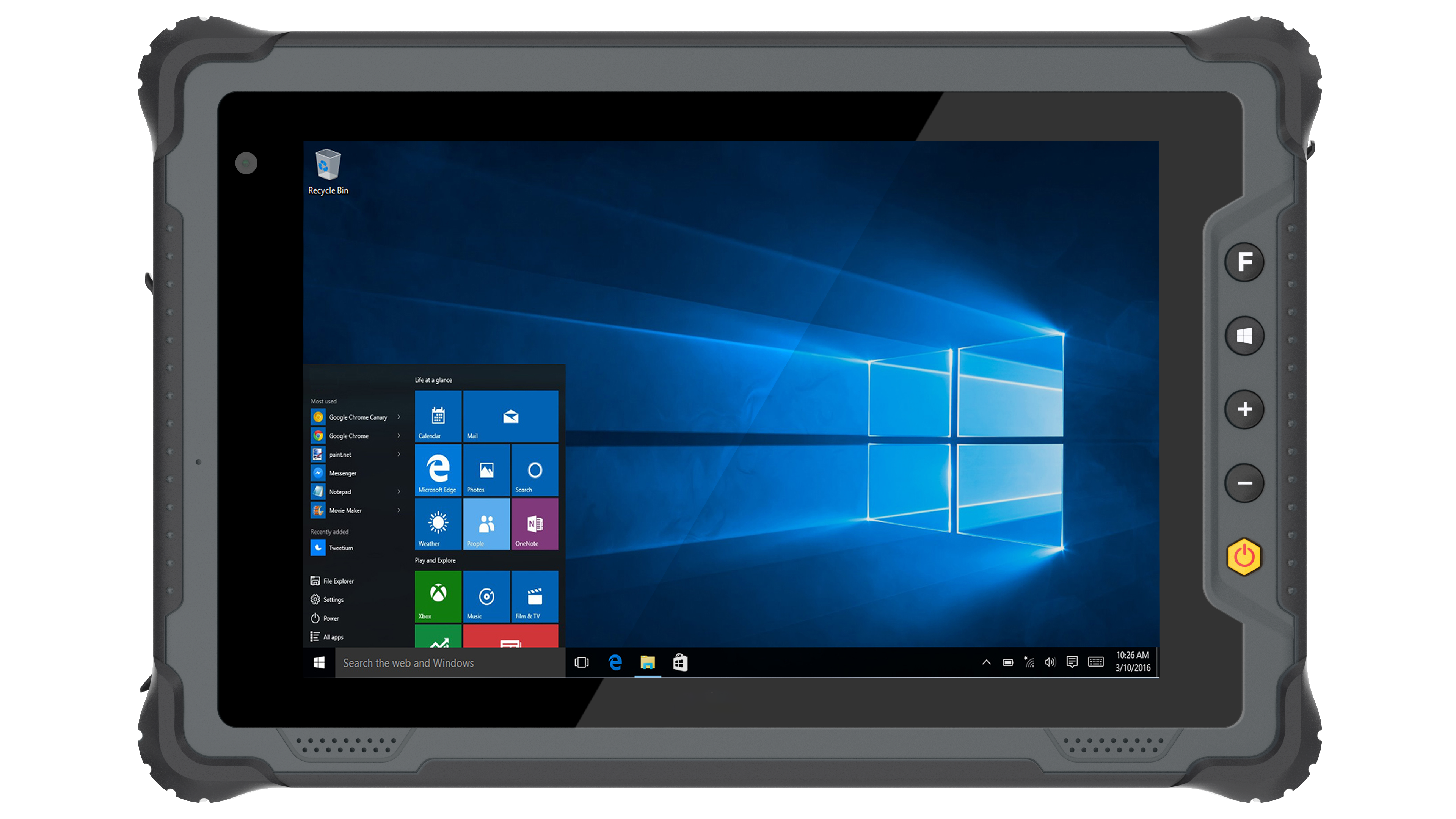

Rugged industrial tablet with Intel® Alder Lake N100 processor and Windows 10 Home support.
It offers powerful performance with its Intel® Alder Lake N100 processor.
The 8-inch 1920x1200 resolution screen offers 550 nits of brightness, providing a clear image even in sunlight.
It has high-speed data processing capacity with 8 GB LPDDR5 RAM and 128 GB internal storage.
It features 802.11 a/b/g/n/ac/ax dual-band wireless connectivity with WiFi 6 support.
With its front 5MP and rear 8MP cameras, it can capture high-resolution images in industrial and field work.
It provides long-term use with its 7.6V/5000mAh replaceable battery.
GNSS: GPS, GLONASS and optional Beidou support, precise positioning.
It can be connected to an external monitor or display thanks to the HDMI 2.0a mini output.
It offers a durable body and wide accessory support for industrial use.
It has a structure suitable for vehicle installation.
Flexible OEM/ODM production options are available.
The manufacturer may change technical specifications without notice.
Features
| Product Code | IPC4-RT-I88N-N10-100-8128-HB |
| Screen size | 8" IPS |
| Resolution | 1920 x 1200 |
| Screen Format | 16 | 10 |
| Brightness | 550 cd/m² |
| Touch Type | 5-point capacitive Panda Glass, COF, Stylus 930 supported [G+G, 7H hardness] |
| Embedded GPU | Intel® UHD Graphics |
| Cooling | Without Fan |
| Processor [CPU] | Intel® N100 4 Core 0.70 GHz / 3.40 GHz BM : 5505 |
| Processor [CPU] Family | Intel® Processor N® |
| RAM [System Memory] | 8 GB |
| SSD/HDD/mSATA/M.2 | 128 GB eMMC |
| USB 3.0 | x1 |
| USB Type-C | x1 |
| Video Output | HDMI 2.0 mini x 1 |

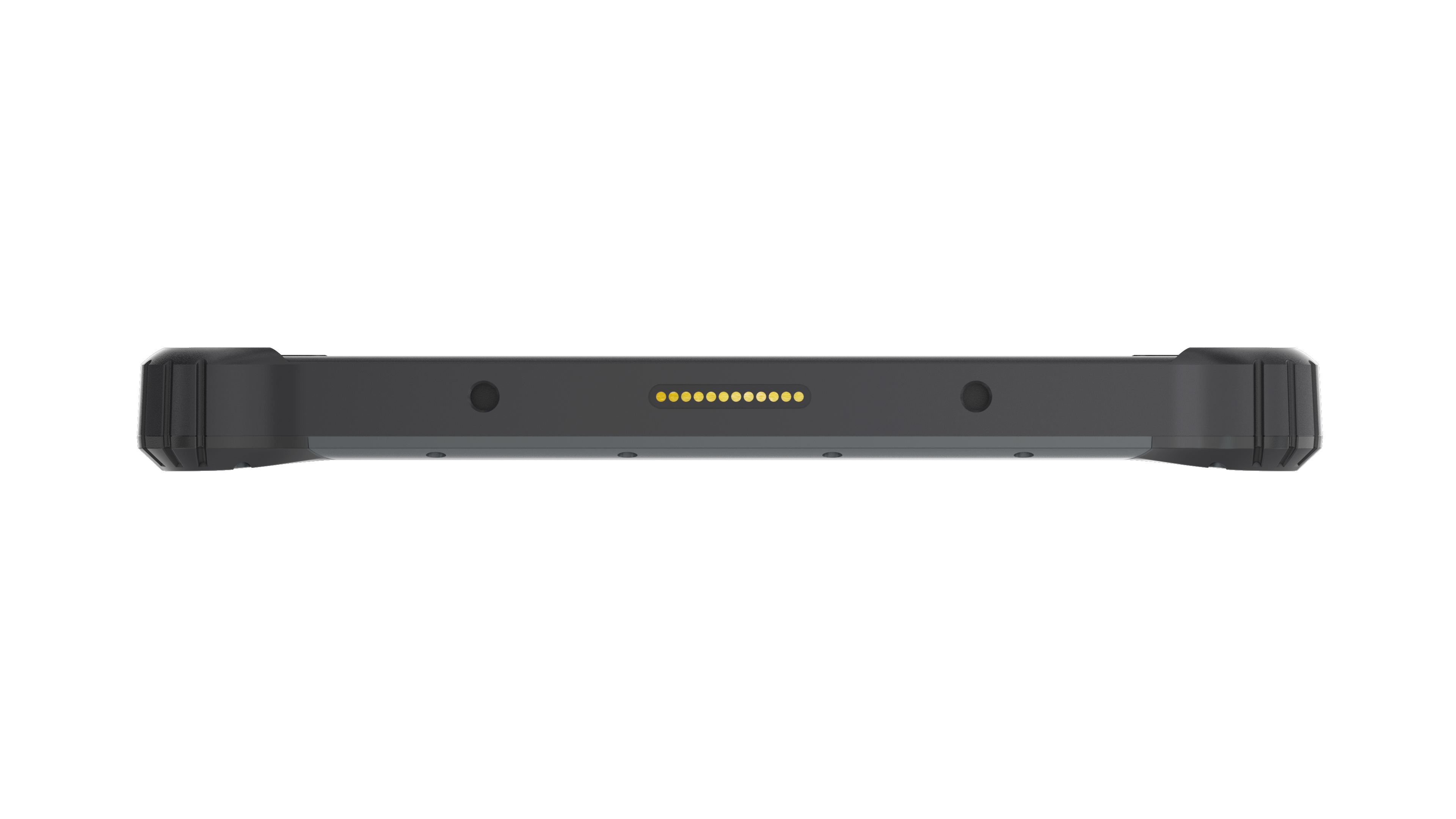

| POGO | 12PIN Pogo Pin x 1 |
| Audio Output | 3.5mm headphone jack x1 + Internal 8Ω/1W Waterproof Speaker x2 |
| Expansion Slot | Micro SD x 1 |
| Wireless | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Bluetooth | BT5.2 (BLE) |
| Front camera | 5MP |
| Rear Camera | 8MP |
| 4G - LTE | It comes with standard hardware. It will be delivered with an IMEI registration to BTK. IMEI registration is included in the price. |
| GPS | (+) |
| G Sensor | (+) |
| 2D/QR Code Reader | Optional |
| NFC | Optional |
| Battery | 7.6V/5000mAh |
| Battery Usage Time | 7.5 hours (with 50% screen brightness, 300 nits, 1080p video playback) |
| SHIMMER | x1 |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 236.7 x 155.7 x 20.8 |
| Weight (kg) | 818g |
| Body Material | PC+TPU |
| IP Protection Class | IP65 |
| Certificates | CE | MIL-STD-810H |
| Supported Operating Systems | Windows®10 [Pre-installed] | Windows®11 | Linux | Operating system sold separately from license. |
