A durable, field-ready tablet PC equipped with the Intel® Alder Lake N100 processor.

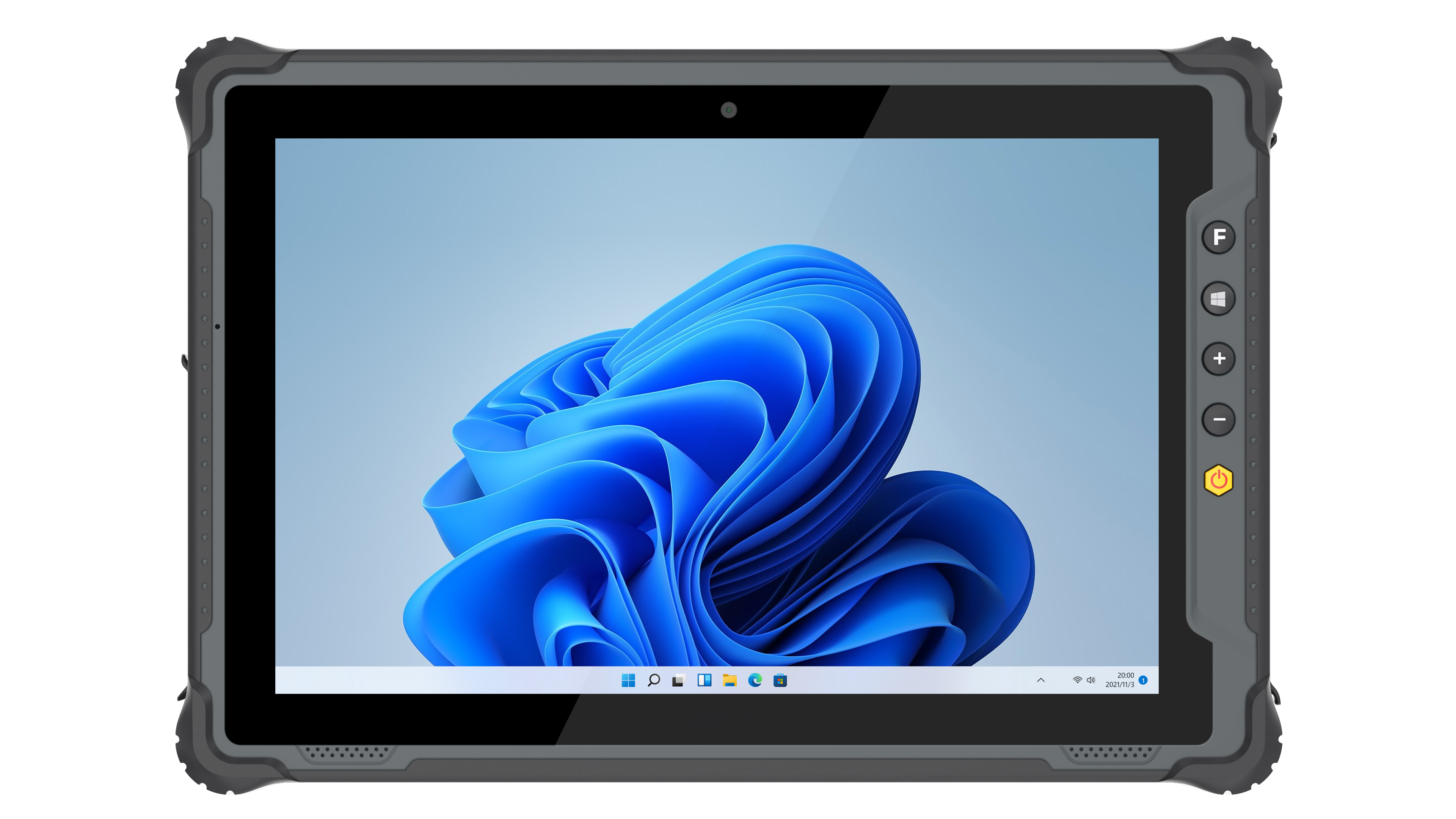

The 10.1-inch IPS screen provides excellent visibility even in sunlight with its 1200x1920 resolution and 1000 nit brightness.
Thanks to its IPS panel, it provides wide viewing angles and high color accuracy.
It offers smooth multitasking and high performance with 8GB LPDDR5 RAM.
It provides fast data access and storage with 128 GB eMMC storage capacity.
It offers high-speed wireless connection support with Wi-Fi 6 802.11 (a/b/g/n/acR2/ax) technology.
It can take high-quality images and videos with its 5.0MP front and 8.0MP rear cameras.
Standard Accessories 12V/4A Power Adapter, Shoulder Strap, Removable 7.6V/5000mAh Battery Optional Accessories Docking Station (DC87), Vehicle Mount (VUMI17J), – Used with a 5.5mm → 4mm DC converter cable. Multi Charging Station (MDC87J), Car Cigarette Lighter Charger Adapter (19V/3A), Wide Voltage Input Modules (9V–36V / 20V–80V), VESA / RAM Mounting Brackets, Functional Adapter Cables, 12PIN → USB / CAN / CVBS / RS232 / RS485 / RJ45 12PIN → 12 cable output (for customized connections), GPS Antenna (Rod / Mushroom), 4G / Wi-Fi Antennas, Active / Passive Stylus Pen, Optional Detachable Keyboard
It offers extensive connectivity options including USB 3.0, Type-C 3.1, HDMI 2.0a, RJ45 LAN and 12PIN Pogo PIN.
Built-in speaker (8Ω/1W x2) provides clear sound output.
It provides long-term use with its 7.6V / 5000mAh replaceable battery.
It complies with MIL-STD 810H military standards and can operate in harsh weather and environmental conditions.
It provides precise location tracking with GPS + GLONASS (Optional BeiDou) support.
It is resistant to dust and water thanks to its IP65 protection class.
Thanks to its modular structure, it can be customized for different business lines.
Optional NFC, 4G LTE and 2D barcode scanner modules can be added.
It can be used worldwide thanks to the 100~240V adapter support.
Increases portability with additional accessories such as in-car mounting kit and shoulder strap.
It is ideal for industrial, logistics, open field and defense industry applications.
Offers 2-in-1 use with optional detachable keyboard.
Its lightweight and durable design increases portability for field workers.
It is suitable for precise data entry with optional active and passive pen support.
Product Code | IPC4-RT-I18N-N10-100-8128 |
Screen size | 10.1" IPS |
Resolution | 1200 x 1920 |
Screen Format | 16 | 10 |
Brightness | 1000 cd/m² |
Touch Type | 10-point G+G capacitive screen, Panda Glass, glove-supported, scratch-resistant (7H) |
Embedded GPU | Intel® UHD Graphics |
Cooling | Without Fan |
Processor [CPU] | Intel® N100 4 Core 0.70 GHz / 3.40 GHz BM : 5505 |
Processor [CPU] Family | Intel® Processor N® |
RAM [System Memory] | 8 GB LPDDR5 (Optional 16 GB) |
SSD/HDD/mSATA/M.2 | 128 GB eMMC |
LAN/Ethernet | RJ45 x 1 (GbE) Optional |
USB 3.0 | x1 |
USB 2.0 | x1 |
USB Type-C | x1 |
RS 232 Serial Port | x1 |
Video Output | HDMI 2.0a (Mini) x 1 |

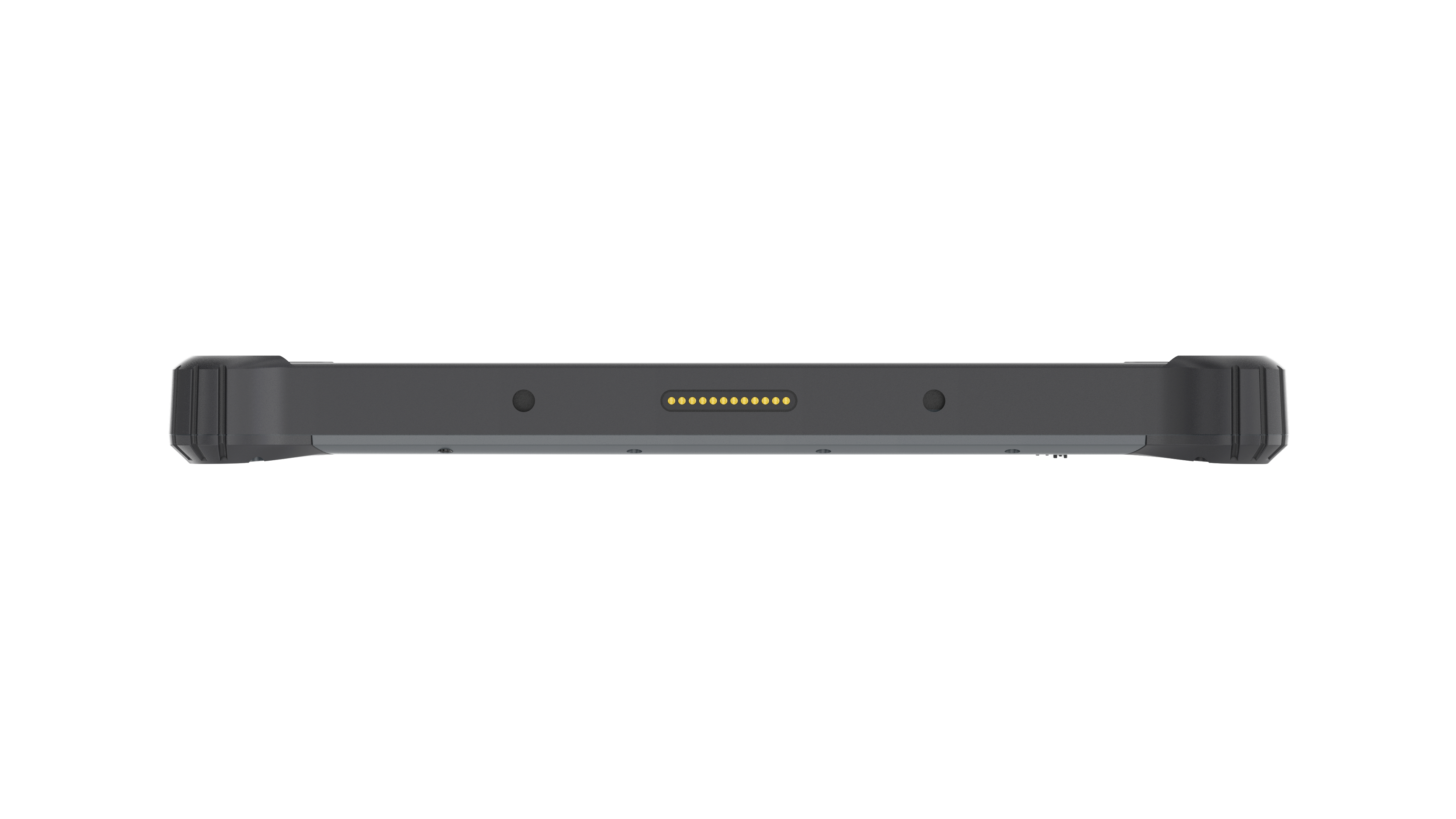

POGO | 12PIN Pogo Pin x 1 |
Audio Output | 3.5mm headphone jack, Built-in 8Ω/1W Waterproof Speaker x 2 |
Expansion Slot | Micro SD x 1 |
Wireless | 802.11 |
Bluetooth | BT5.2 (BLE) |
Front camera | 5MP |
Rear Camera | 8MP |
4G - LTE | It comes with standard hardware. It will be delivered with an IMEI registration to BTK. IMEI registration is included in the price. |
GPS | (+) |
G Sensor | (+) |
2D/QR Code Reader | Optional |
Fingerprint reader | (+) |
NFC | Optional |
Battery | Main Battery: 7.6V / 5000mAh (Replaceable) |
Battery Usage Time | 6.5 hours of usage time, 30% screen brightness (300 nits), 22% volume, 1080P video with 70 dB sound output from 30 cm distance |
Docking + In-Vehicle Mounting | (Optional) DC87R (+) VUMI17J (+) MDC87J |
SHIMMER | x1 |
Supply Voltage | DC 12V/4A |
Working temperature | -20°C ~ 60°C |
External Dimensions (mm) | 274.9 x 188.7 x 22.2mm |
Weight (kg) | 1140g |
Body Material | PC+TPU |
IP Protection Class | IP65 |
Certificates | CE | MIL-STD-810H |
Supported Operating Systems | Windows®10 [Pre-installed] | Windows®11 | Linux | Operating system sold separately from license. |
