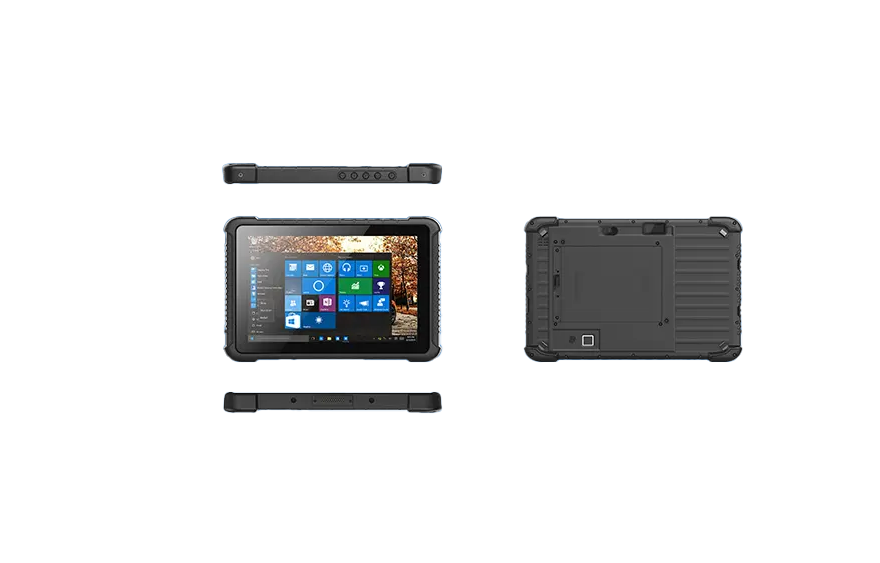

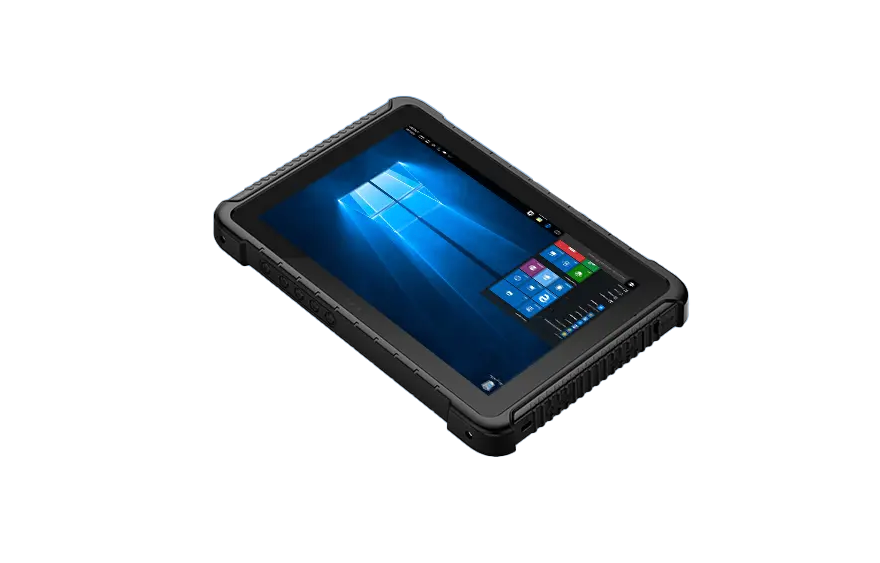

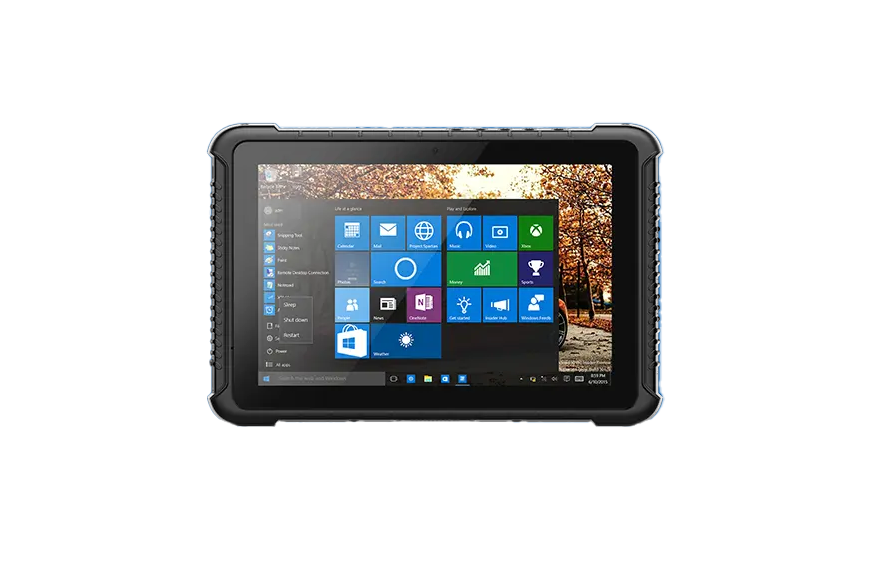

IPC4-RT-I16J-C10-5100-8128
Brand: IPC4 by ICC
Categories:
A tablet PC suitable for use in industrial sites, featuring a durable Intel® Jasper Lake N5100 processor.
It offers good image quality with its 10.1" FHD touch screen (1920x1200, 400 nit brightness).
It provides a fast and stable Windows experience with 8 GB DDR RAM (Optional 4 GB).
128GB eMMC storage capacity offers flexibility with expandable Micro SD card support (up to 512GB).
It offers dual-band (2.4G + 5.8G) wireless connection support thanks to Wi-Fi 802.11 Intel® 9461a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax technology.
It can take photos and videos with the front 5.0MP and rear 8.0MP AF camera.
7.4V/5000mAh battery capacity offers long-term use with its replaceable battery.
Windows 11 Home operating system provides up-to-date and secure use.
It offers high stability for wireless connections with Bluetooth 5.1.
NFC support (Optional) enables contactless data exchange and identity verification.
GPS and GLONASS supported GNSS system provides precise location tracking.
Optional 2D barcode reader (Honeywell module) is suitable for logistics and warehouse management.
It provides speed in data transfer with USB 3.0 Type-A and USB 2.0 Micro USB ports.
It supports wired network connection with RJ45 Ethernet port (10/100Mbps).
RS232 serial port provides connection with industrial devices.
HDMI 2.0a mini x 1Type-C connector, support external display connection.
Standard Accessories Hand strap, Carrying handle, 12V4A Power Adapter.
IP65 level durable body provides protection against impacts and dust.
Optional fingerprint reader provides secure login.
Optional Accessories Docking station, In-car mounting kit, Car charger, Leather case, Backpack strap, Shoulder strap, Replaceable battery, Quad charger.
The IPC4 Rugged Tablet combines powerful Intel® Celeron®, Core™ processors, Windows 11, and a rugged design to deliver reliable performance for demanding industries like logistics, transportation, and field service operations.
The IPC4 Rugged Tablet is designed for harsh environments with Intel® Celeron® and Core™ i5/i7 processors and Windows 11 for powerful performance. Its rugged construction and comprehensive connectivity options meet the needs of industrial professionals.
Features
| Product Code | IPC4-RT-I16J-C10-5100-8128 |
| Screen size | 10.1" TFT LCD |
| Resolution | 1920 x 1200 |
| Screen Format | 16 | 10 |
| Brightness | 400 cd/m² |
| Touch Type | 10-point capacitive screen, G+G technology, over 7H hardness, scratch resistant, 930 model stylus pen support. |
| Embedded GPU | Intel® HD Graphics Gen 11 LP |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Celeron® N5100 4 Core 1.10 GHz BM : 3350 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 8 GB DDR (Optional 4 GB) |
| SSD/HDD/mSATA/M.2 | 128 GB eMMC |
| LAN/Ethernet | RJ45 x 1 (10/100Mbps) Optional |
| USB 3.0 | x1 |
| USB 2.0 | x 1 (Micro USB) |
| RS 232 Serial Port | x1 |
| Video Output | HDMI 2.0a (Mini) x 1 |
| POGO | 12PIN Pogo Pin x 1 |
| Audio Output | 3.5mm headphone jack |
| Expansion Slot | Micro SD x 1 512GB |
| Wireless | 802.11 |
| Bluetooth | BT5.1 (BLE) |
| Front camera | 5MP |
| Rear Camera | 8MP |
| 4G - LTE | It comes with standard hardware. It will be delivered with an IMEI registration to BTK. IMEI registration is included in the price. |
| GPS | (+) |
| G Sensor | (+) |
| 2D/QR Code Reader | Optional Honeywell N3680 |
| Fingerprint reader | (+) |
| NFC | Optional |
| Battery | 7.6V/5000mAh |
| Battery Usage Time | 7.4V/5000mAh (Replaceable) |
| Docking + In-Vehicle Mounting | (Optional) DC87R (+) (Optional) VHM17R |
| SHIMMER | x1 |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 280.4 x 187 x 26.6 |
| Weight (kg) | 1014g |
| Body Material | PC+TPU+10%GF |
| IP Protection Class | IP65 |
| Certificates | CE | MIL-STD-810G, UN3803, MSDS, Aviation report, Marine report, IEC62133 |
| Supported Operating Systems | Windows®10 [Pre-installed] | Windows®11 | Linux | Operating system sold separately from license. |
